To route the conductors near to the switch
-
Not to make the conductors unnecessarily long
-
To fit the protective hose supplied over the cable and insert the covered
cable into the strain-relief device if cable diameters are small

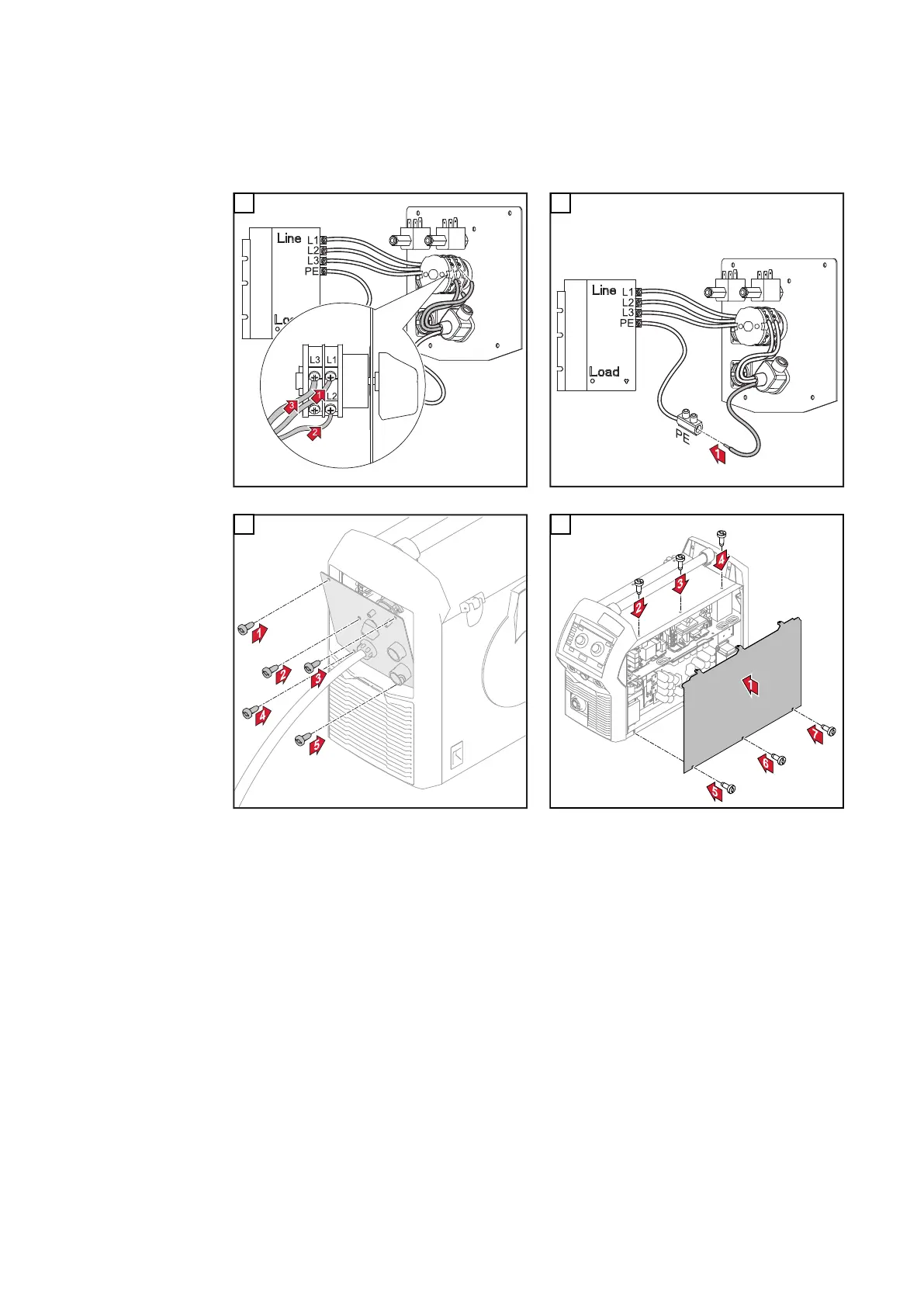

Tightening torque = 1.2 Nm
5
Tightening torque = 1.2 Nm
6
5 x TX25, tightening torque = 3 Nm
7
6 x TX25, tightening torque = 3 Nm
8
