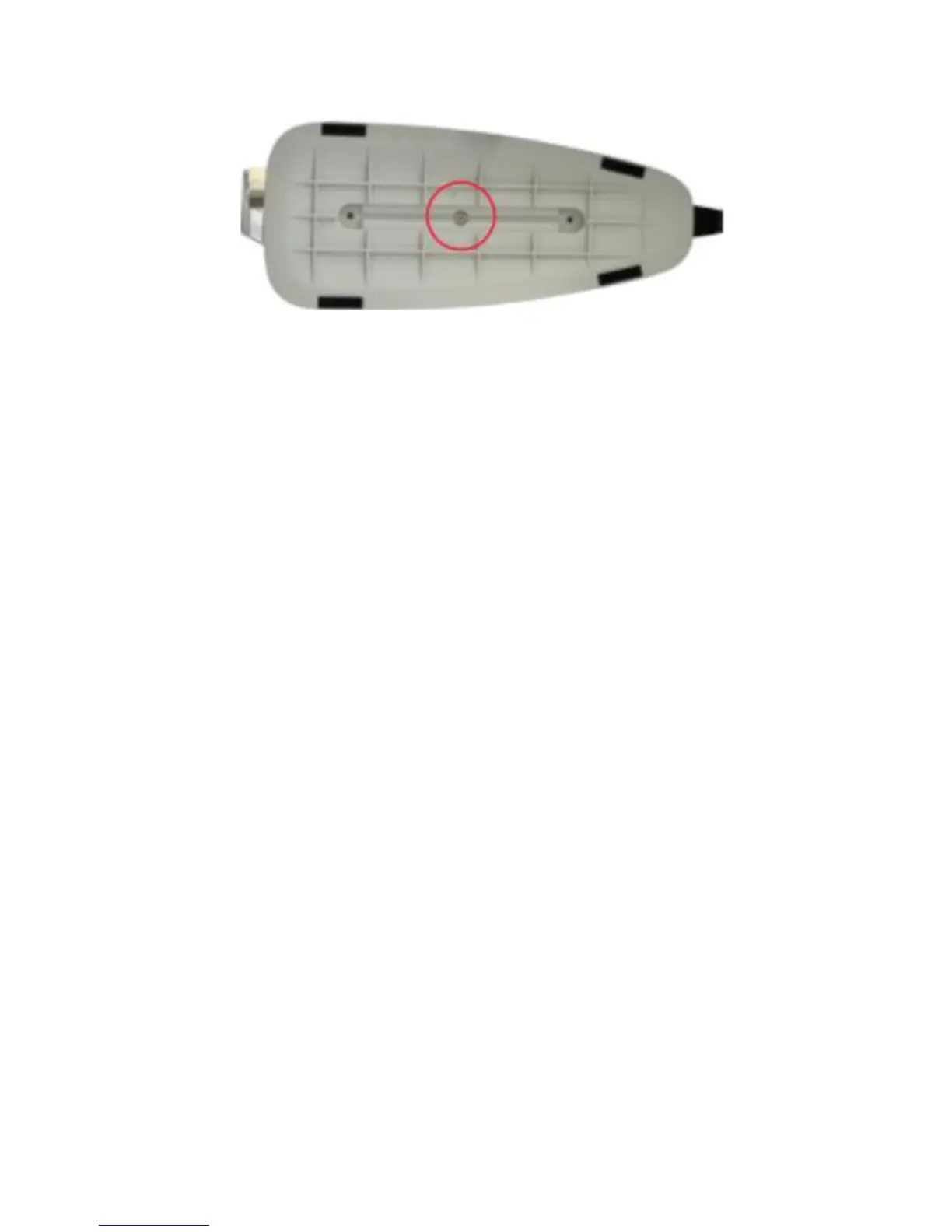

2. Slide the foot toward the front of the Gateway and pull the foot from
the holes. You may need to wiggle the foot slightly.
3. You may use the wall mount bracket as a template for positioning the
Gateway.
1.3d/ MOUNTING THE GATEWAY TO A WALL
GETTING TO KNOW YOUR GATEWAY
4. Mark the mounting holes, then remove the wall mount bracket from
the wall.
5. Drill holes for the screw anchors.
6. Insert the screw anchors in the holes in the wall,then insert the
screws intothe screw anchors and tighten the screws. Leave
screws extended about 0.2 inches from the wall.
7. Verify the screws are positioned correctly by placing the wall bracket
on the screws. Remove the wall bracket from the wall.
8. Place the Gateway on the wall bracket and slide the Gateway forward
until it locks in place.
