128 4 Paper
3. Adjust the paper guides to the size of the
paper.
Important
• Make sure that the guides are positioned lightly against
the paper. Paper guides that are positioned too tight or two
narrow can cause paper jams.
• Do not load paper above the maximum fill-line. Doing so
can cause paper jams.
Note
• When printing from the bypass tray, use the print driver to configure paper size and type settings. For more
information, refer to the online help for the print driver.
• When printing without using the print driver (such as lpr printing of a PDF file), use the printer
’
s control panel to
configure the paper type setting. For more information, see "[Paper Type]" (P.190).

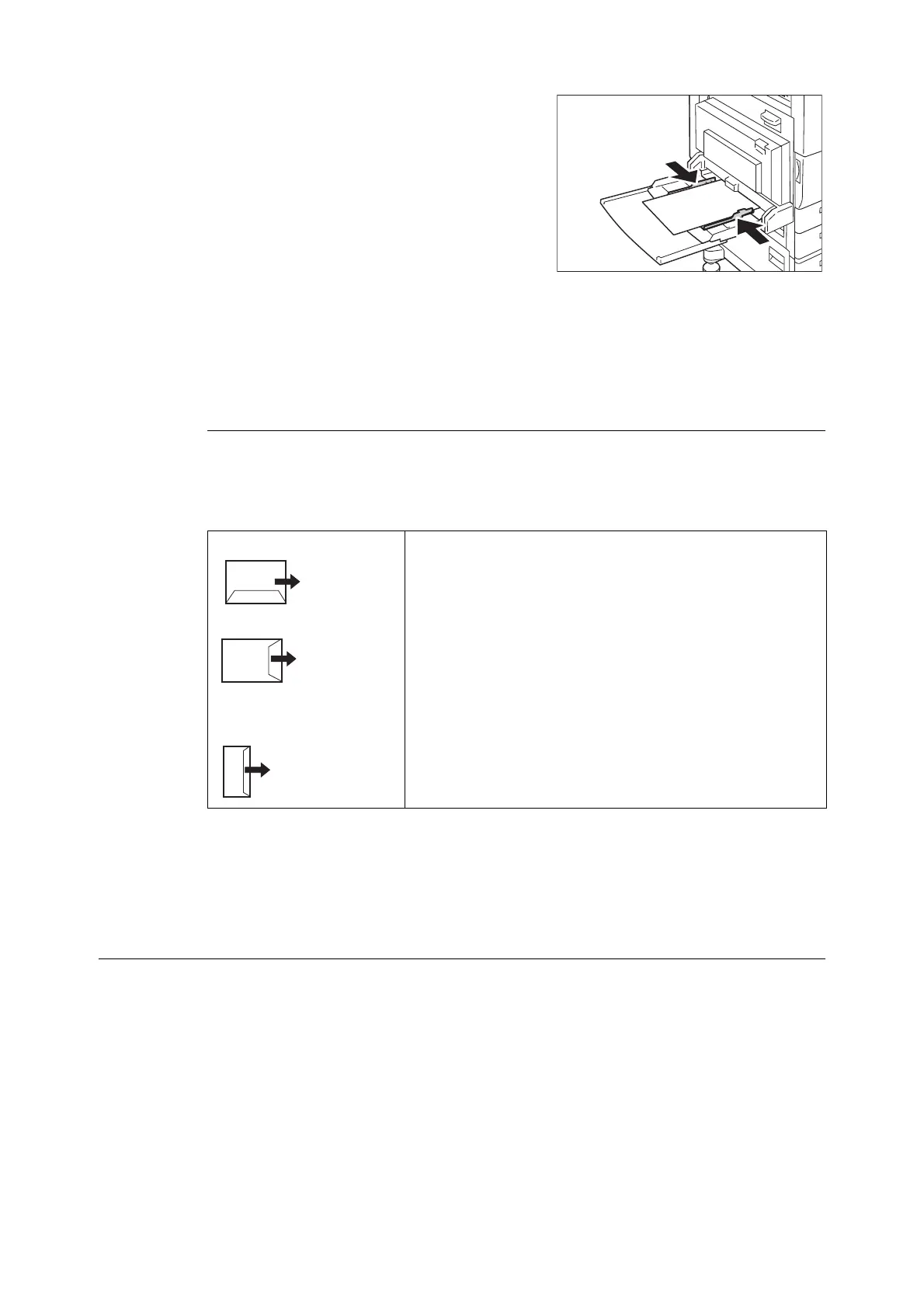

Bypass Tray Feed Orientations for Envelopes
When loading envelopes in the bypass tray, close the flaps of the envelopes and set them with
the address side facing down. Configure the print driver settings depending on the types of
envelopes and loading orientations as follows.
Note
• Register the paper size with the length of the flap included in [Custom Paper Size] when printing envelopes with
keeping the flap open. Configure the register paper size in [Original Document Size] as well as [Output Paper Size],
and then select [Portrait and landscape (For envelopes)] in [Image Rotation 180 Degrees].
Load the envelopes so they feed from the bottom of the envelopes (from the opposite side of the flap).
Loading paper into Trays 1 through 4
As a standard feature, Trays 1 and 2 (Standard Tray) are installed to this printer. You may also
use Trays 3 and 4 when Two Tray Module (optional) is installed. This section describes how to
load paper into Tray 1 as an example.
Envelope C4 (229 x 324 mm)
Envelope C5 (162 x 229 mm)
Monarch Envelope (3.9 x 7.5”)
No.10 Envelope(4.1 x 9.5”)
DL Envelope (110 x 220 mm)
Configure the following settings by selecting [Paper/Output]
tab > [Paper] menu > [Advanced Paper Selection] dialog
box.
• Original Document Size: Select the configured size of envelope
• Paper Tray: Tray 5 (Bypass)
• Bypass Paper Type: Envelope
To Next Page
