6.1 Clearing Paper Jams 237

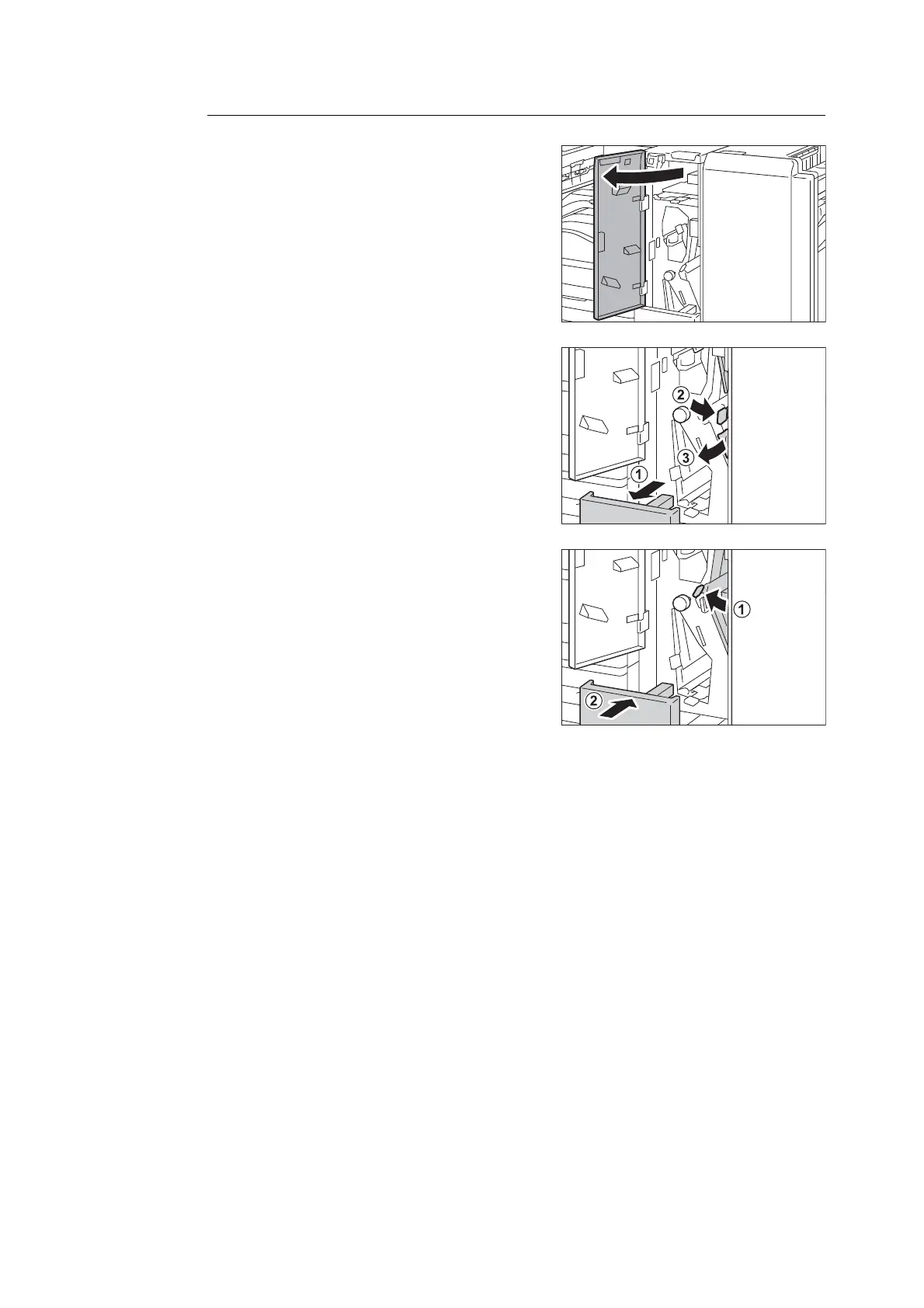

Paper Jams at the Tri-fold Output Tray 2d and the Handle 2g
1. Make sure that the machine has stopped, and
open the folder unit door of the Folder Unit
CD1.
2. Pull out the Tri-fold output tray 2d (1), and
move the handle 2g to the right (2). Remove
the jammed paper (3).
Note
• If paper is torn, check for any torn pieces of paper inside
the machine.
3. Return the handle 2g (1), and push the Tri-
fold output tray 2d in (2).
4. Close the folder unit door of the Folder Unit
CD1.
Note
• A message will be displayed and the machine will not
operate if the folder unit door of the Folder Unit CD1 is
even slightly open.
To Next Page
