2.6 Importing Printer Inf
ormation to a Print Driver
67
6.

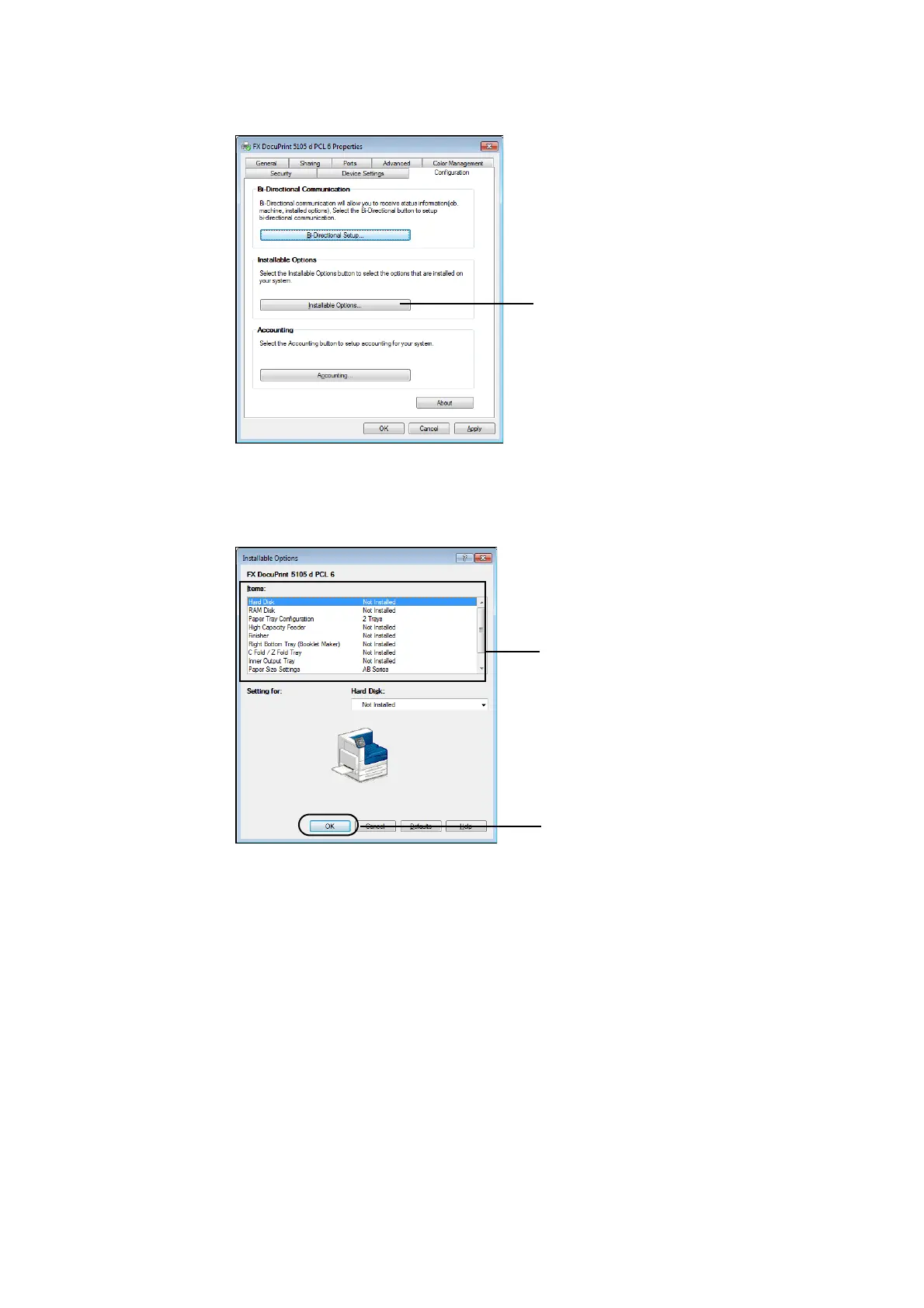

Click [Installable Options].
7.
Set items necessary in [Items].
8.
Click [OK] to close the dialog box.
9.
Click [OK].
