Main window GXCC

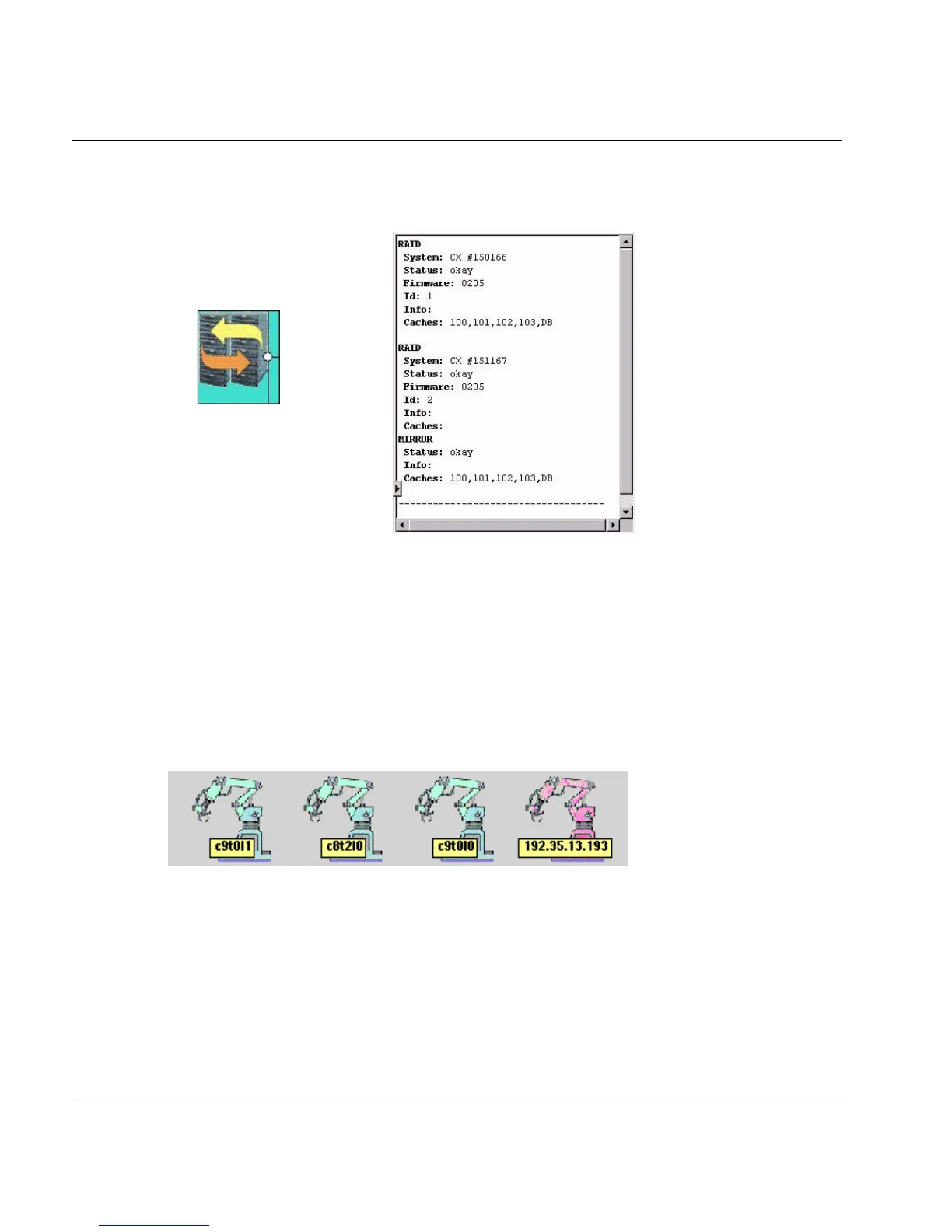

Left-clicking on the RAID symbol causes further information to be output in the right-
hand part of the GXCC info window:
This example shows a CentricStor with two RAID systems (IDs: 1 and 2).
Information on both RAID systems is output in the info window:
The primary caches 100, 101, 102, 103 und DB are located on the RAID system with
the ID 1. The associated secondary cache is located on the RAID system with the ID 2.
Archive systems
Each access system is depicted at the lower edge of the screen in the form of an industrial
robot. A label shows the internal name in the case of SCSI-controlled archives and the IP
address in the case of LAN-controlled systems.
An error has occurred on the robot shown on the right-hand side of this diagram.
RAID symbol
RAID information
in the info window
