U41117-J-Z125-7-76 303
Global Status History diagrams

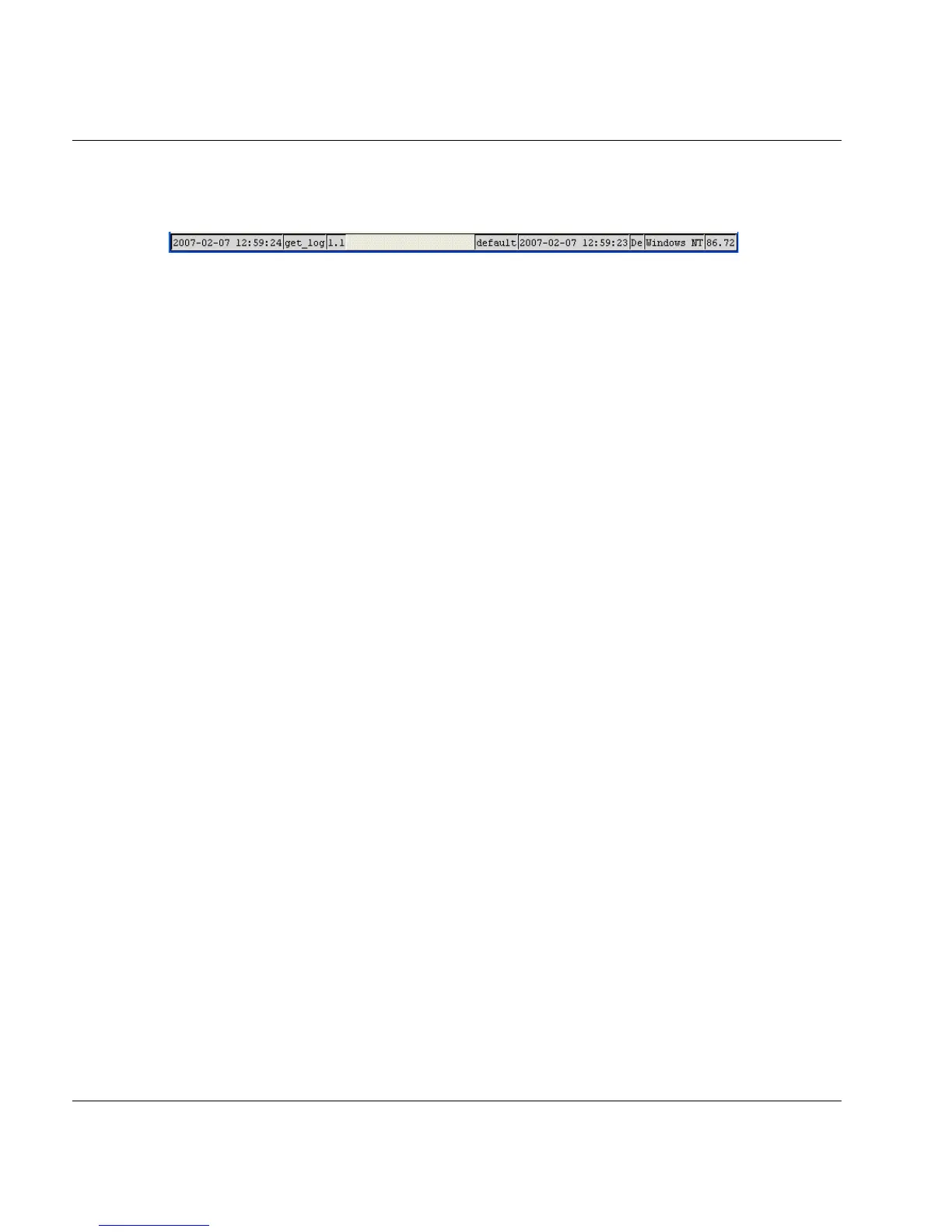

7.7.3 Status bar
The status bar at the bottom of the screen displays (from left to right) the following informa-
tion:
remote_time Time stamp of the last history call on the connected CentricStor
protocol Type of protocol used: get_log or read_log
Protocol version Version number of the protocol
Profile Name of the profile currently used
last history call Time stamp of the last history call on the GUI computer
Language Language set for the helps
Platform Operating system
Version Version of the program
7.7.4 Diagrams for the throughput (left-hand part of the screen)
Overall throughput
This function can also be reached via the function bar (see the section “Statistics » History
of » Channel/Device Performance” on page 266). The chronological progress for the host
adapter and device throughput is displayed. The buttons along the lower border can be
used to mask out individual data types.
Mode selection (max, min/max or average, see section “Selecting the presentation mode”
on page 263) is supported.
