370 U41117-J-Z125-7-76
ISP XTCC
8.6.2.2 Version Consistency Check
This function is offered only if the consistency check mechanism is available on the moni-
tored system and inconsistencies have been detected in the currently installed software
version. This case can, for example, occur in the event of subsequent integration of devel-
oper corrections.

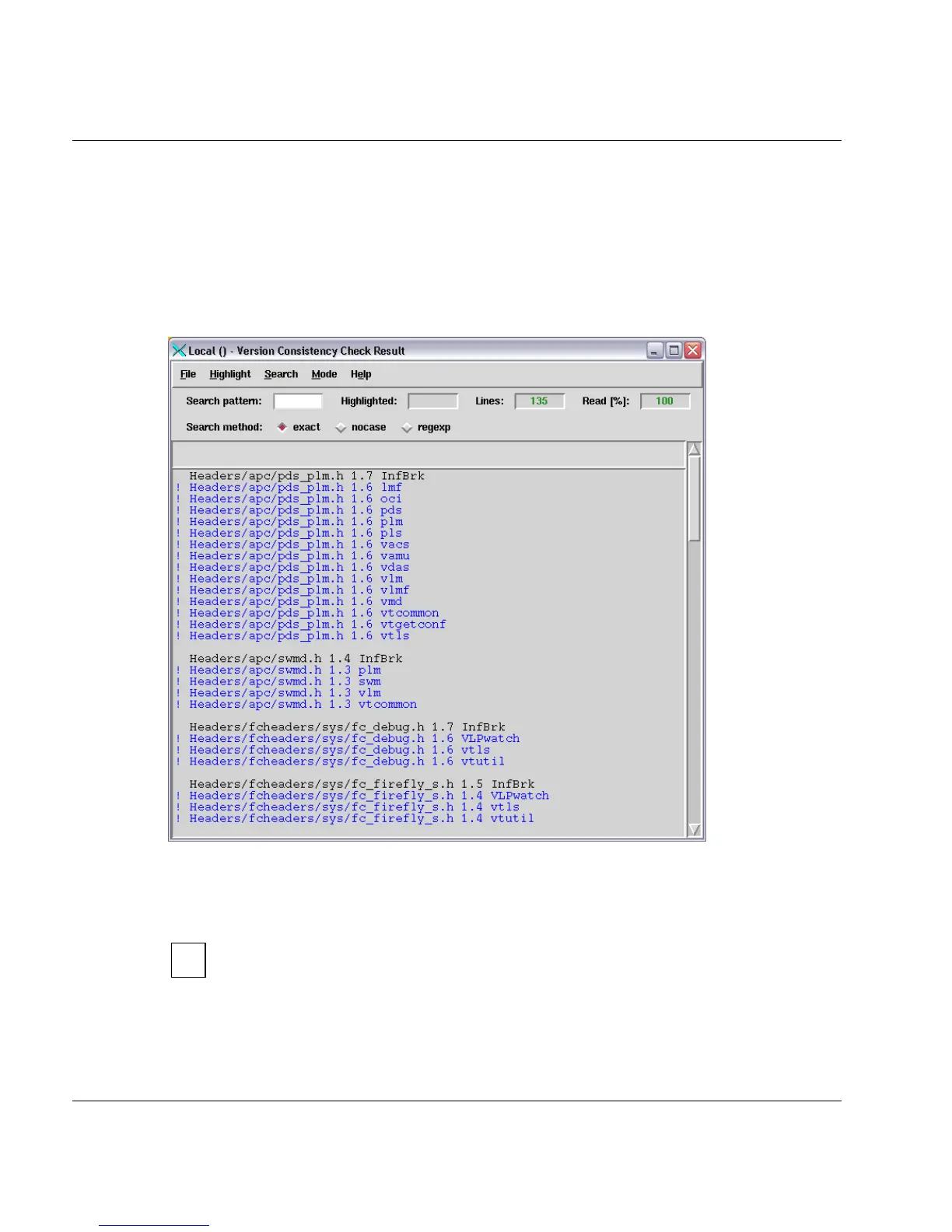

A window opens in which the result of the check is displayed:
This example shows that Version 1.7 of header file headers/apc/pds_plm.h was used
when the “InfBrk” package was created. The blue script below this which is preceded by an
exclamation point lists all the packages in which another version of this header file was
used.
For diagnostic purposes it is advisable to save the content of the file viewer window
using the file viewer’s “File - Save As” function.
i
