ESCON/FICON host adapter XTCC

8.8.2.2 Show Node Element Descriptors

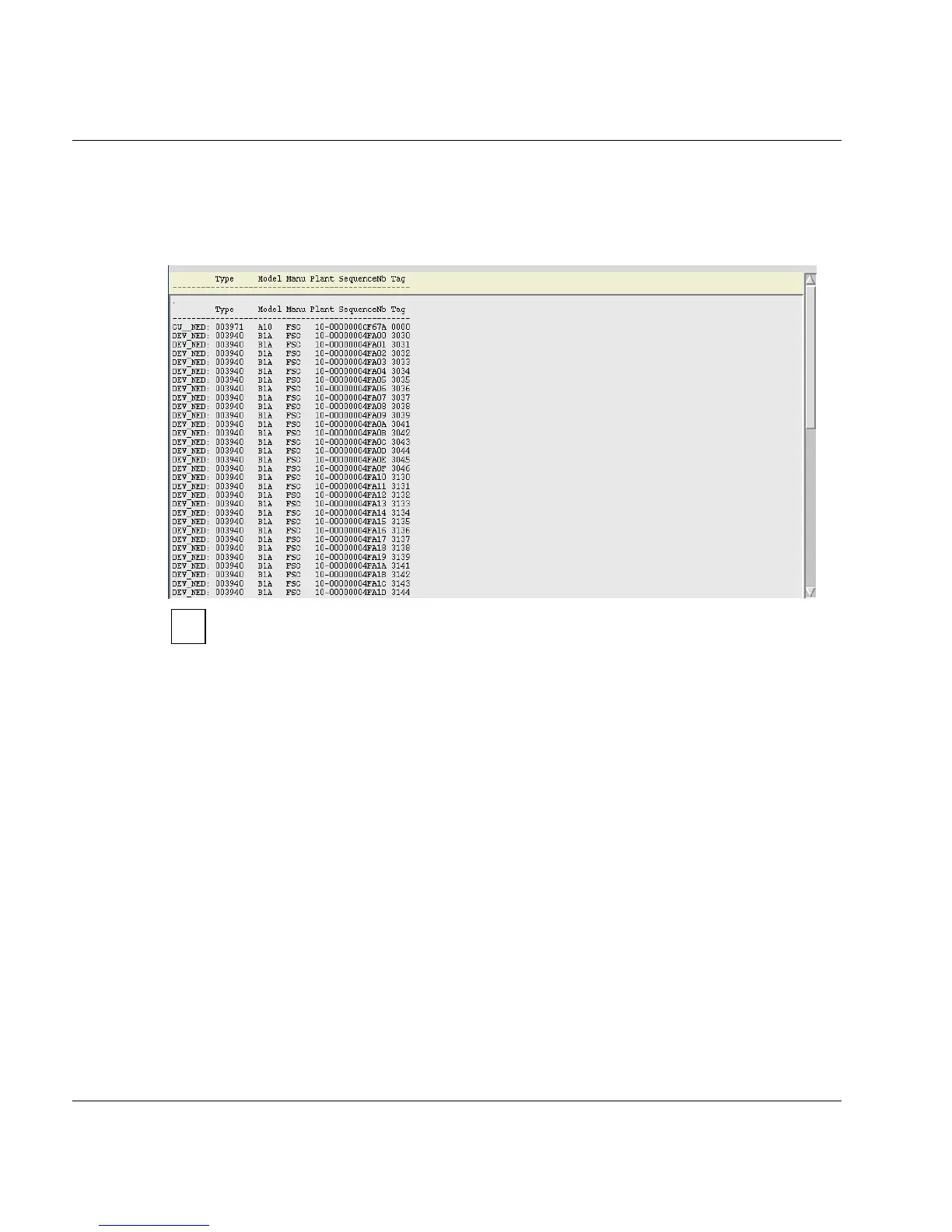

Display of the node element descriptors of an ESCON/FICON host adapter and the under-

lying virtual devices.

Show/View functions open windows that are equipped with scroll bars and search

functions. For information on the tools that can be used to navigate through these

windows when large data volumes are involved, see the section “File viewer” on

page 360.
