XTCC SCSI controllers
8.22 SCSI controllers
8.22.1 Object information on SCSI controllers
Each SCSI controller is represented by a block at the bottom of the inner window. Within
the block, the device number (SCSI #1, SCSI#2, etc.), controller number, and interface type
(SP = SCSI parallel / FC = Fibre Channel) are displayed. The status of the controller is
indicated by the colors pink (hanging status “true” in the case of SP, link status “down” in
the case of FC), green (ready for operation), yellow (unknown), or white (not available).
FC controllers (RAID system connection) are handled in the same way as SCSI controllers.
The label “FC” allows you to differentiate them from the drive controllers, which are labelled
“SP” (standing for SCSI parallel).

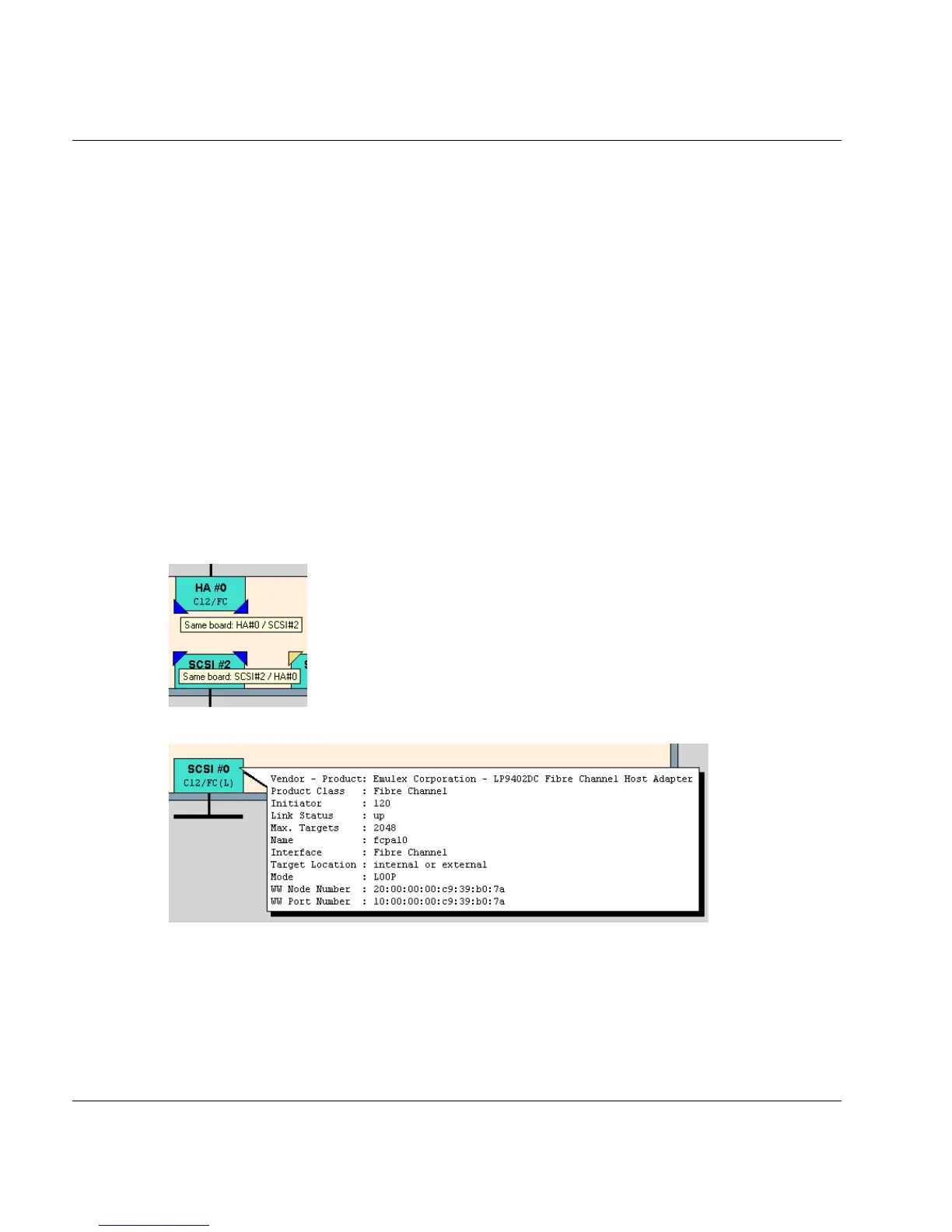

For technical reasons FC controllers are displayed at both the top border (as HA) and the
lower border of the screen. You can recognize the assignment from the small colored
triangles at the top/bottom of the symbol. Furthermore, when you touch these triangles with
the mouse cursor this assignment is displayed in a small text window (“Balloon”).
The following information is displayed:
Vendor - Product vendor and product name
Product Class product class
Initiator the SCSI address of the controller
Link Status an indication of the presence/absence of a hang condition (parallel
SCSI) or whether the link is up/down (FC)
