XTCC Cartridge drives (real)

8.23.2.7 Show Medium Info (MIM)

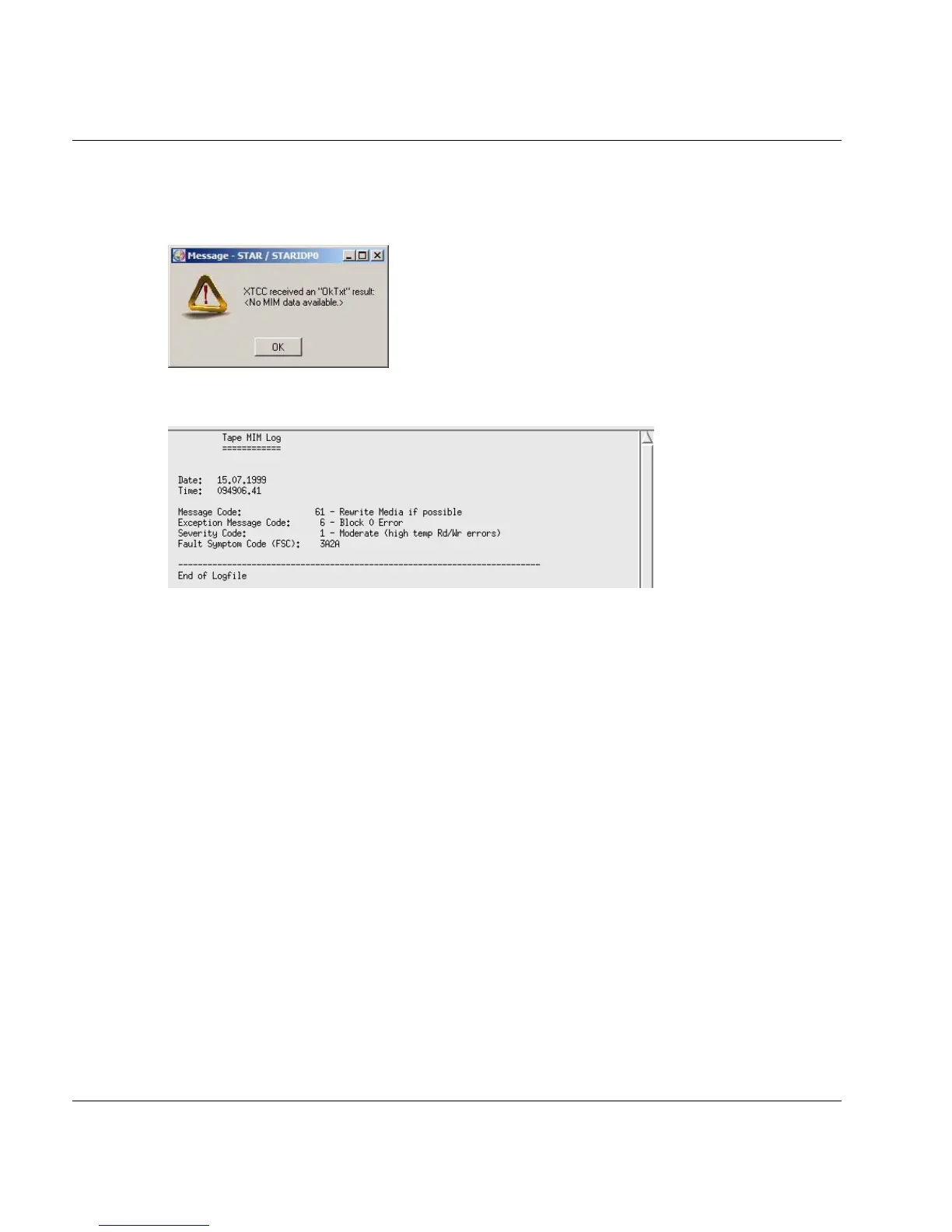

If there is no MIM entry, you will be notified in an info box:

If Medium Information Messages have been recorded, a text window appears with the

messages:

The MIMs of the drives are recorded. The MIMs and the various responses are described

in the maintenance documentation of the devices.
