U41117-J-Z125-7-76 241
Global Status Function bar of the Global Status Monitor

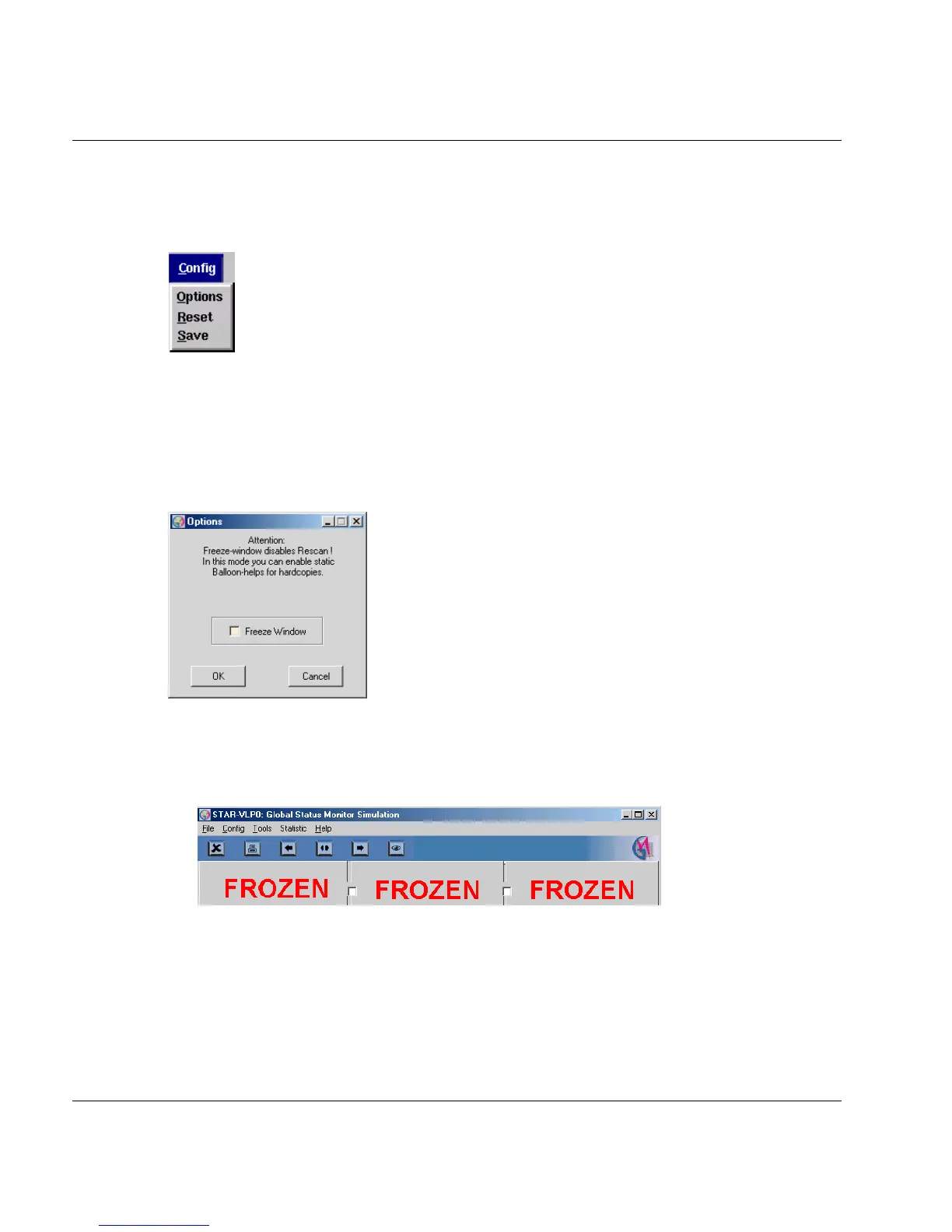

7.3.2 Config
“Config” allows you to control the appearance of the display.
When you click on “Save” in the “Config” menu the position of the GLOBSTAT window on
the screen and the position of the subwindow in this window are stored and reused each
time the “Global Status” is opened again. A separate data record is created for each
monitored CentricStor.
“Reset” resets the screen settings to the values when the software was supplied.
Clicking on “Options” opens the window below:
If you activate the “Freeze Window” button and then click “OK”, the display of “Global
Status” has the following characteristics:
– Updating of the display is suppressed. This is shown by the red label “Frozen” across
all three parts of the image.
– You can left-click a field and make the associated Balloon Help permanently visible.
Click the field again to make the Help disappear again.
