U41117-J-Z125-7-76 381
XTCC ESCON/FICON host adapter
8.8.2 ESCON/FICON host adapter functions
The following functions are available:
– Show Node ID Details
– Show Node Element Descriptors
– Show Dump (prkdump)
8.8.2.1 Show Node ID Details

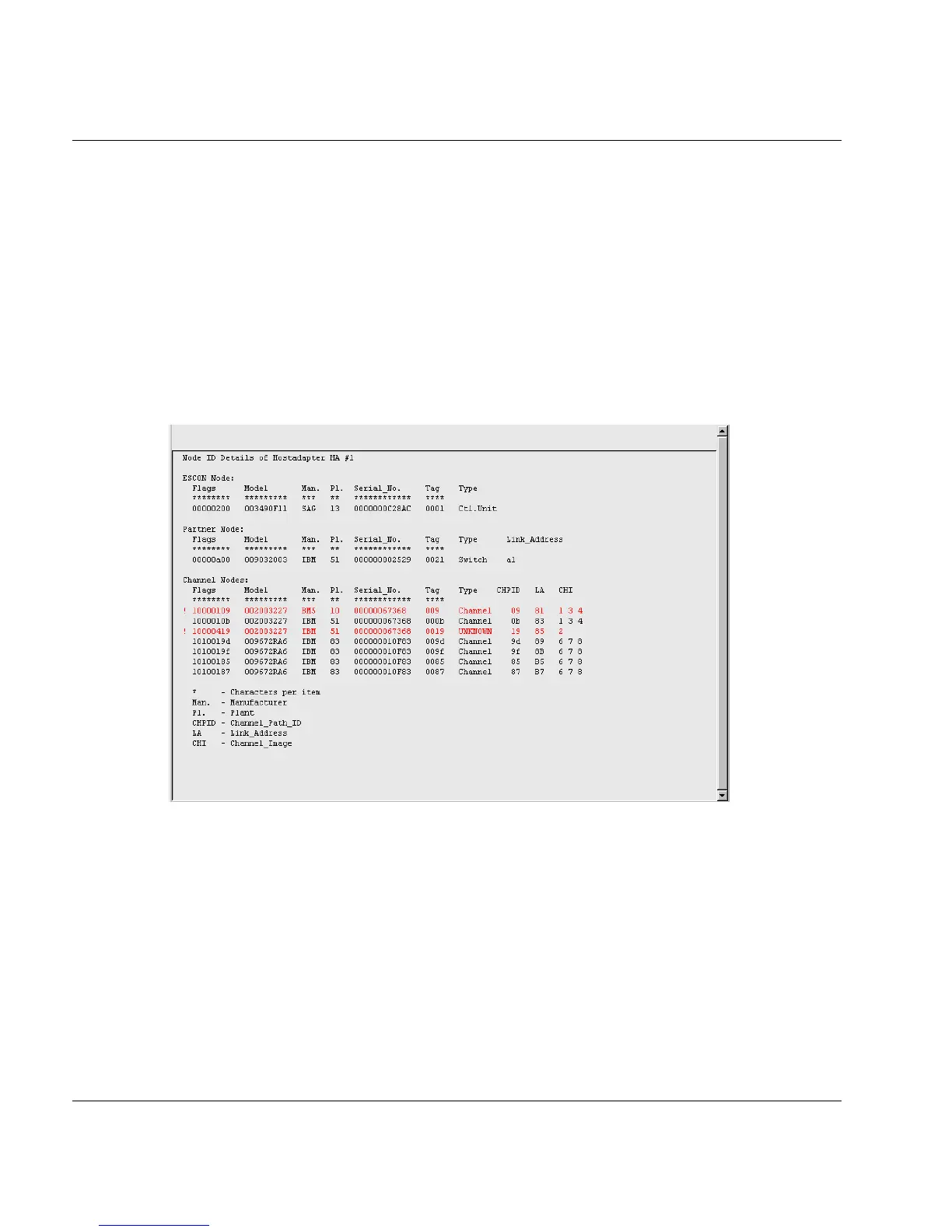

Display of the node element descriptors of an ESCON/FICON host adapter, of the ESCON/
FICON Director, and of the host channels connected to the host adapter:
The node ID is formatted. An explanation of the abbreviations can be found under the list.
If the node ID cannot be decoded, the relevant line is highlighted by an exclamation mark
in the left margin and is colored red.
In the example shown, two errors were detected in the channel node IDs:
Both lines are marked by “!” at the start of the line and are colored red.
The first error involves a shift due to a missing character, while the second errored line
shows “UNKNOWN” as the type.
