138 U41117-J-Z125-7-76
Main window GXCC

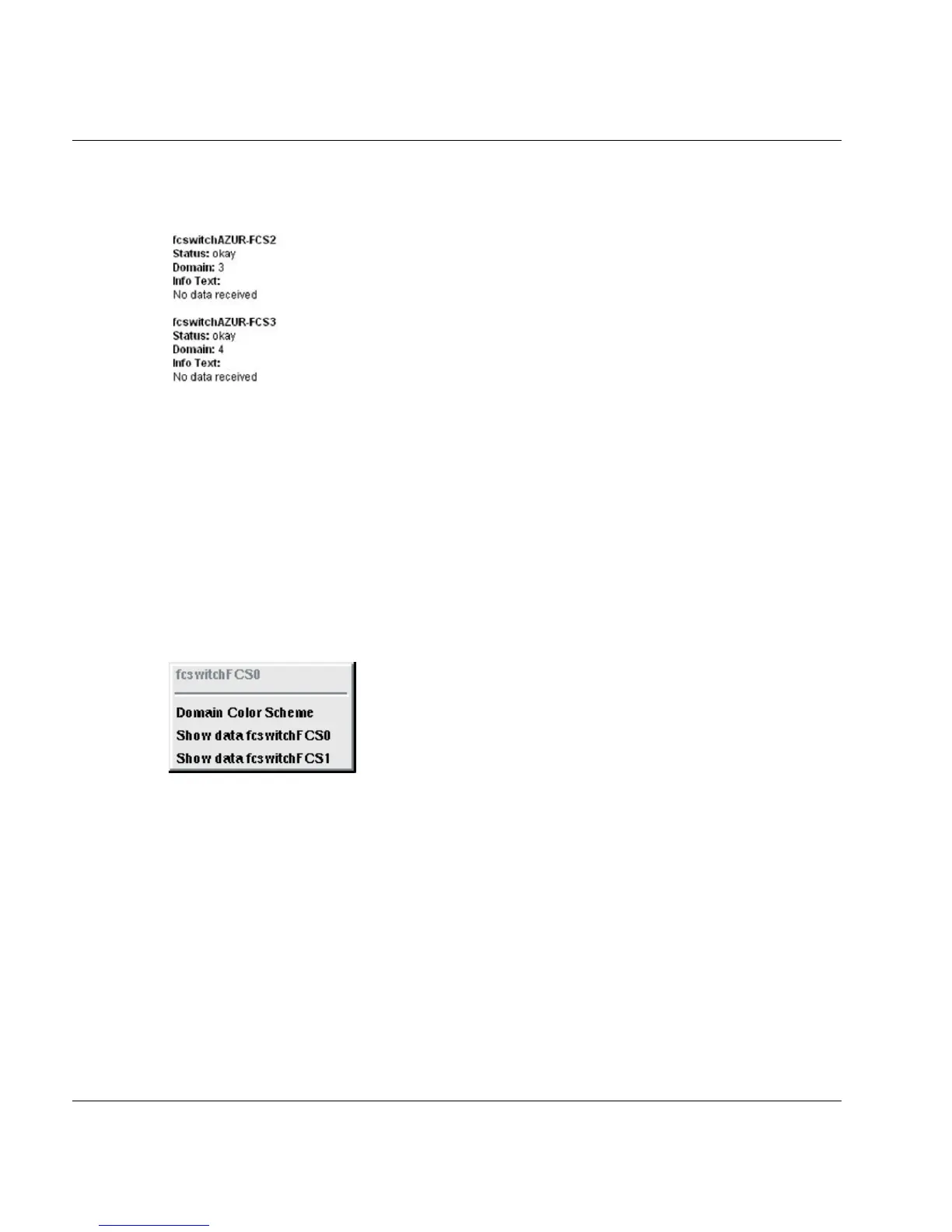

6.1.13 Information on Fibre Channel fabric
Information on FC switches can be obtained via SNMP (Simple Network Management
Protocol). The mnemonic name, operating status, and contents of the last unprocessed trap
are output. If the message “No data received” is displayed instead of this information, this
indicates that there are no unprocessed traps present.
If there is an SNMP trap from one of the FC switches that has not yet been acknowledged,
the button bar in the GXCC window will display an oval-shaped yellow symbol labeled
“SNMP”. The associated information can also be displayed using the “Show data...” function
which is described in the next chapter.
6.1.14 Functions of the Fibre Channel fabric
If one (or more) of the switches has triggered an SNMP trap, the appropriate line in the
menu will also show that information (trap).
