U41117-J-Z125-7-76 373
XTCC ISP
8.6.2.5 Show Configuration Data

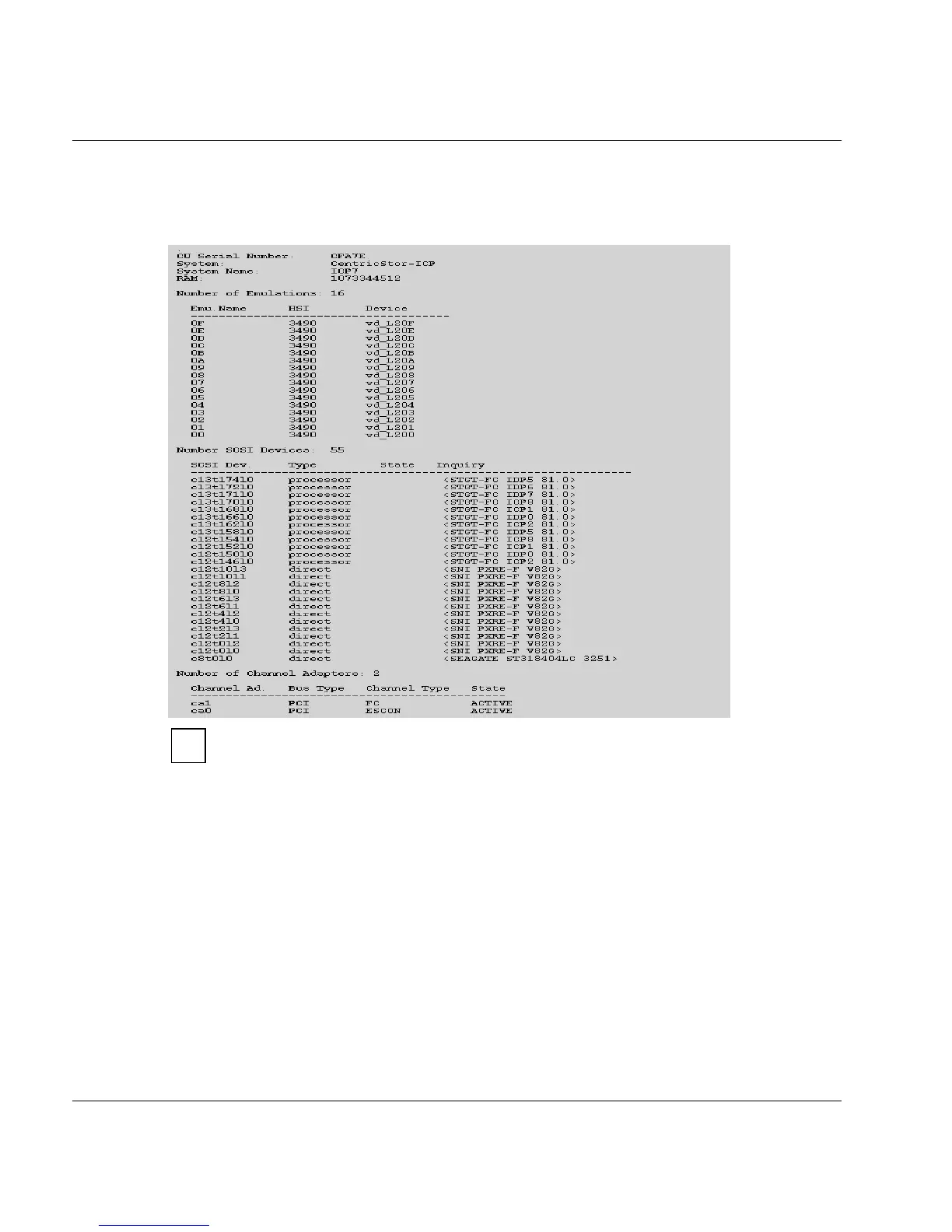

Outputs a configuration display in table form:
For space reasons the example has been shortened.
The configuration data shows:
– information about the ISP
– a list of emulations with emulation name, HSI and device name (for ICPs) or a list of
PDSs for an IDP.
– a description of the CentricStor-internal Fibre Channel topology from the point of view
of the ISP
– information about the host adapters
The description of the Fibre Channel topology is contained in the section “Number SCSI
Devices”, but in coded form. The networking information can be found in the “SCSI Dev”
column if processor or RAID controller is specified under “Inquiry”.
i
