268 U41117-J-Z125-7-76
History data Global Status
7.6.2.5 Statistics » Logical Components » Logical Drives
You obtain statistics on the utilization of the logical drives by selecting an ICP in the
central section of the Global Status display and calling the object-related statistics
function.

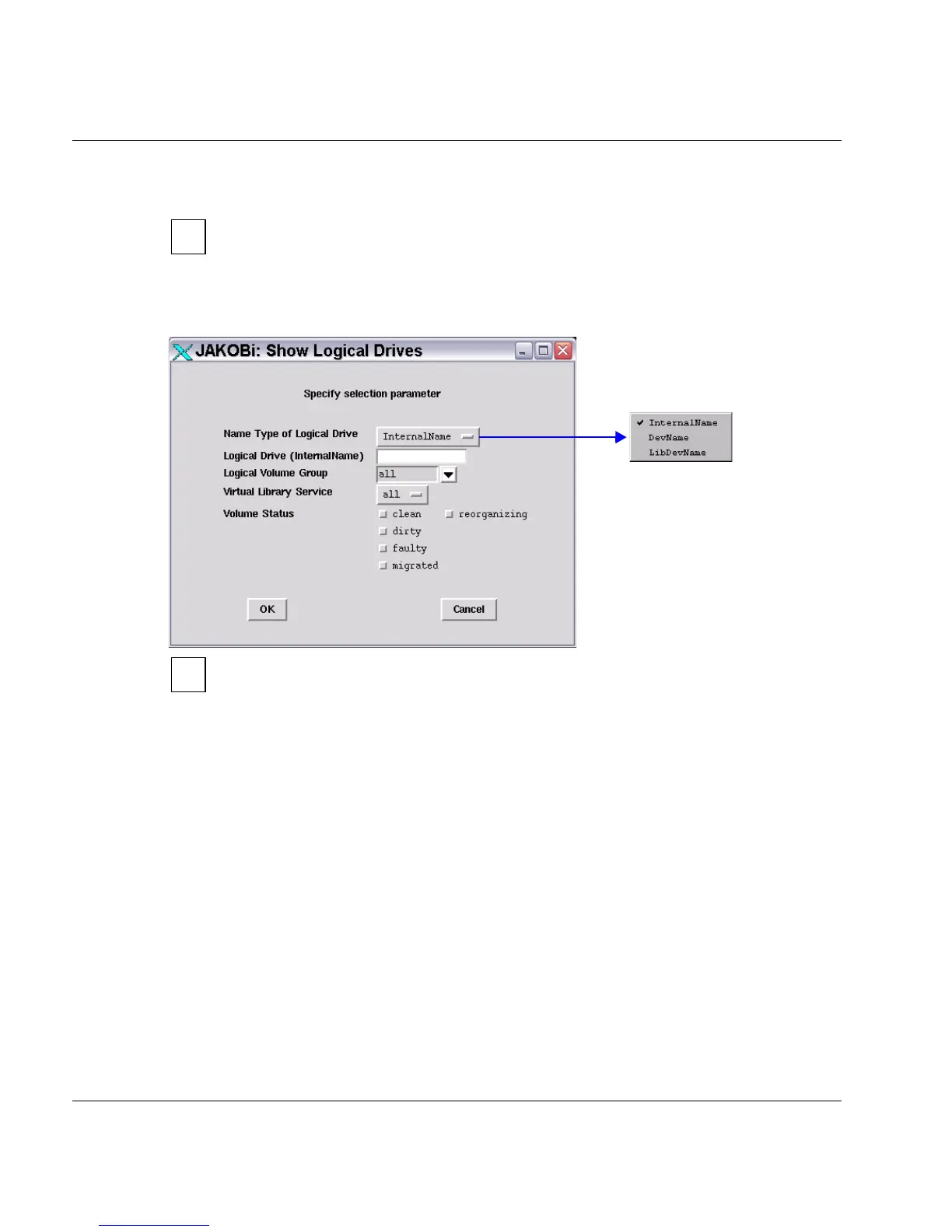

Displays the occupied status of the logical drives. You can select drives in particular
statuses using a selection window:
This statistics function supports the refresh function. Information on this function
and the “OK” and “Cancel” buttons is provided on page 267.
You can select whether the internal name, the device name or the archive address of the
device is to be displayed.
Specification of the name is optional. You can also use wildcards.
For LVGs you can specify “all” or one particular LVG.
Volume Status See the section “Logical Volume Operations » Show Logical Volumes”
on page 203
i
i
