Emulations of drives connected to OS/390 host adapters XTCC

8.9.2.5 Show Memory Log

Displays the process log for the emulation which is present in memory:

This function makes it possible to display a continuous memory trace for the emulation

(logging). This logging is independent of the trace set manually.

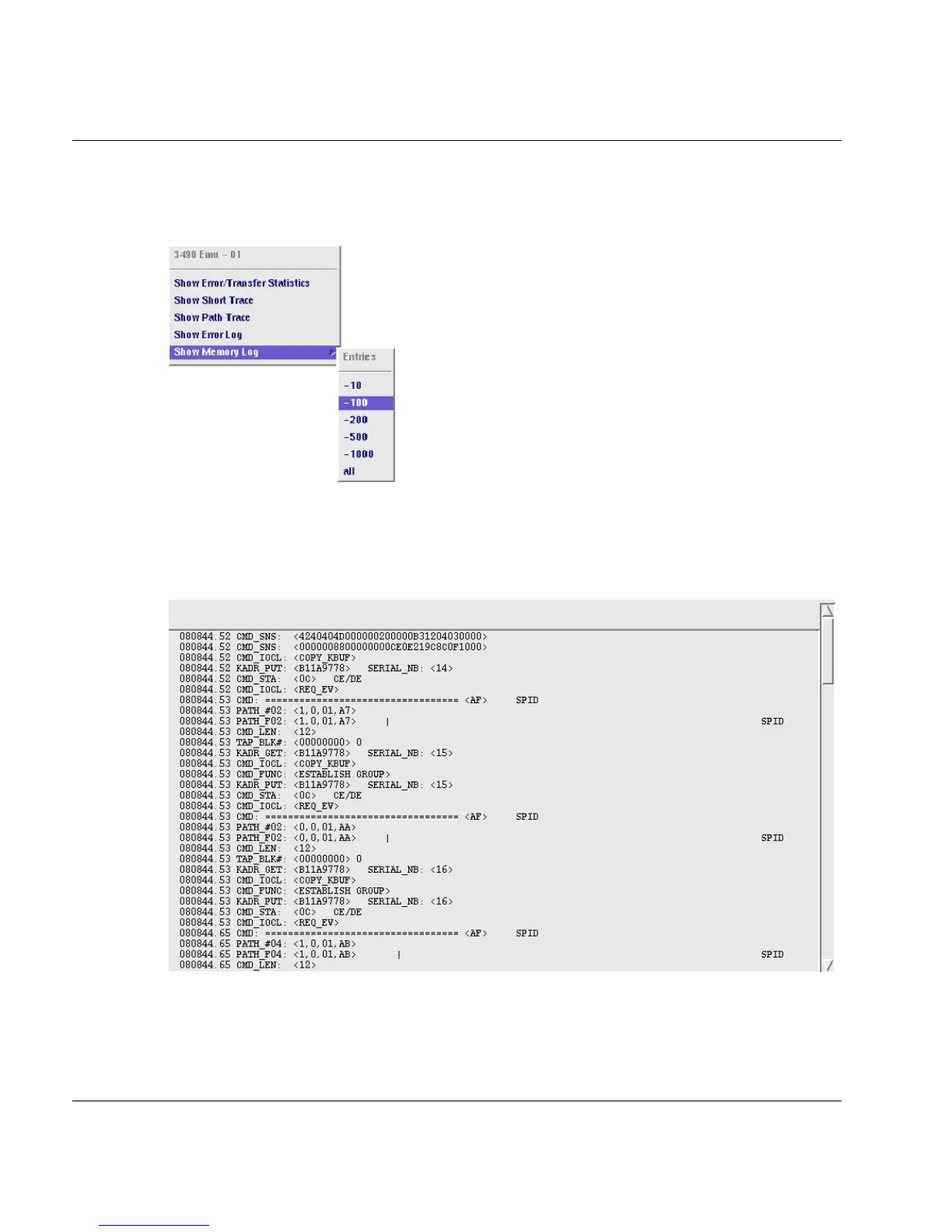

Example

Memory log, range 100

8.9.3 Functions for all 3490 emulations

In Observe and User mode no functions are available which affect all emulations.
