Main window GXCC
6.1.11 Information about the RAID systems

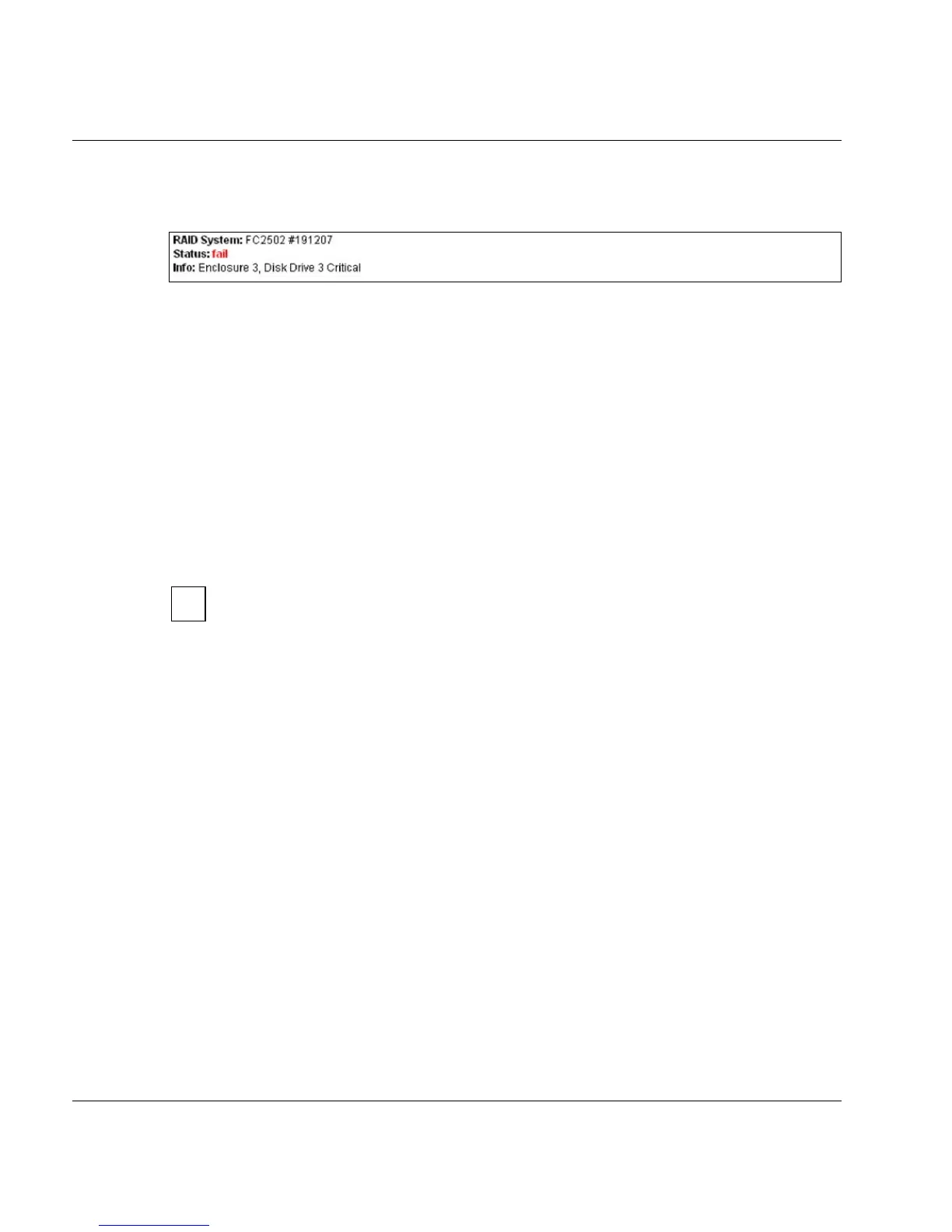

This information box shows the following information for every RAID system (by a box
symbol to the right of the RAID symbol):
– the type and target number of the RAID controller(s)
– the status of the RAID controller(s)
– any additional information available
If CentricStor has several RAID systems, the box to the right of the symbol is divided into
the corresponding number of fields.
Each field is colored to indicate the status of the RAID controller:
Turquoise: OK
Pink: Error, stopped
yellow: Attention
Red: Configuration error
As in the case of the FibreCAT CX500/CX3-20 or Eternus 3000/4000 it is not
possible to read the status via an FC port, the “OK” status (turqoise) is always
displayed for these RAID systems.
Exception If the HBA of an ISP connected via FC switch has not been registed in
the CX500/CX3-20, the CX500/CX3-20 is displayed in red (a corre-
sponding error message is output in the CentricStor system messages).
You will find more detailed information on the RAID system(s) in XTCC (see the
section “RAID systems” on page 411). Other RAID systems run with CentricStor
are also described there.
