Function bar GXCC
Create snapshot(s)

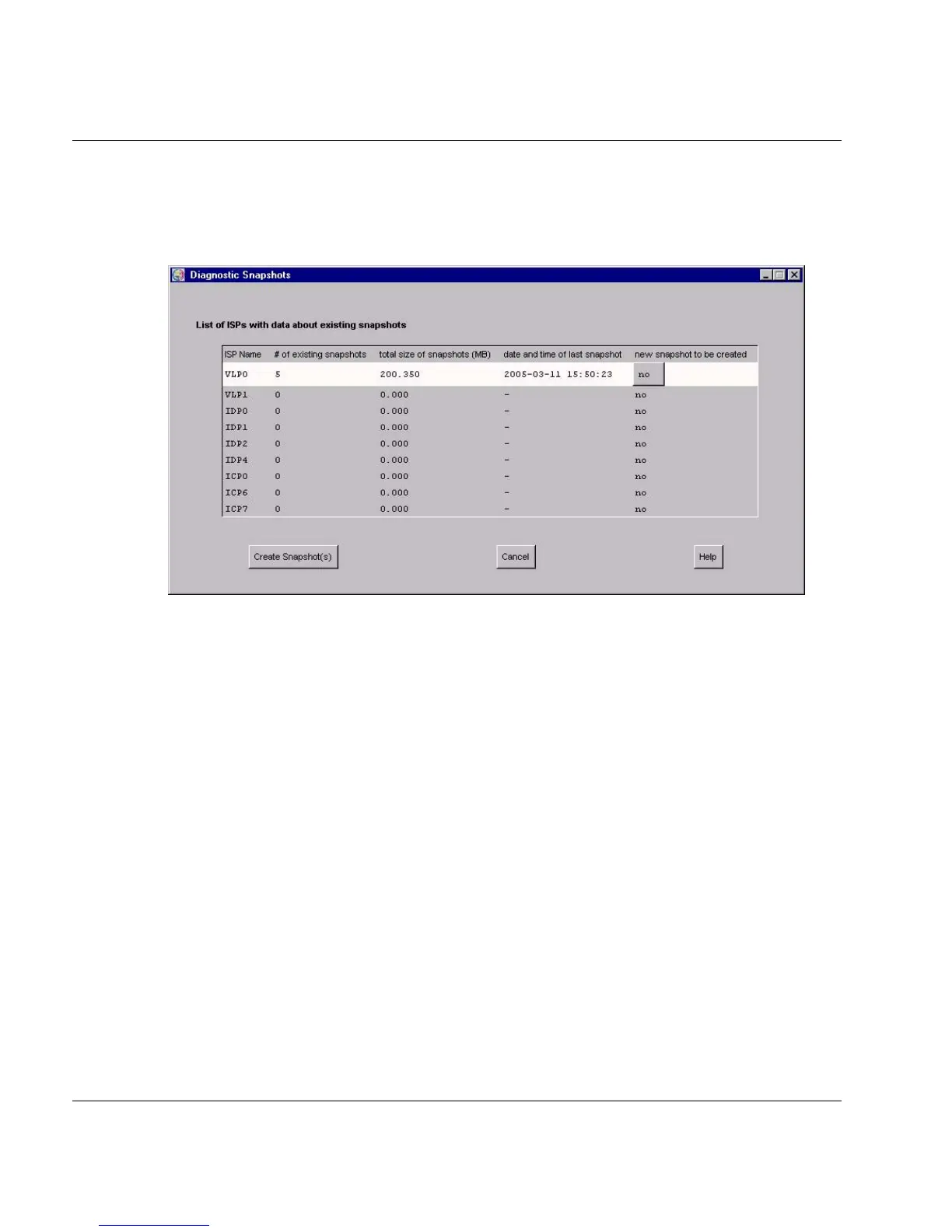

When you select this function, the “Diagnostic Snapshots” window is output which contains
an overview of all ISPs in the system and the Diagnostic Snapshots there:
The columns contain the following information:
ISP Name Names of the ISPs
# of existing snapshots Number of snapshots which already exist on this ISP
total size of snapshots (MB) Total memory space in MB occupied by the snapshots
saved on the ISP
date and time of last snapshot Date and time of the last snapshot on the ISP
new snapshot to be created The user can select “yes” or “no” to decide whether or
not a Diagnostic Snapshot should be generated and
saved on this ISP.
