Function bar GXCC
Logical Volume Group
You can select either a logical volume group or “all”.
Volume Status
With the checkboxes you can specify that only volumes with the selected status are to
be displayed.
If no checkbox is selected all the selected volumes of the specified volume group(s) are
displayed.
A message box is used to indicate whether a volume set selected in this way is empty. After
you have acknowledged with “OK” you can start a new selection.
OK/Refresh After you have clicked on “OK”, a new window with the required data opens.
The OK button is changed to a Refresh button. If you now make a change
in the “Show logical Volumes” form and click on “Refresh”, the output screen
is updated with the new settings.
Cancel The Show Logical Volumes function is terminated.

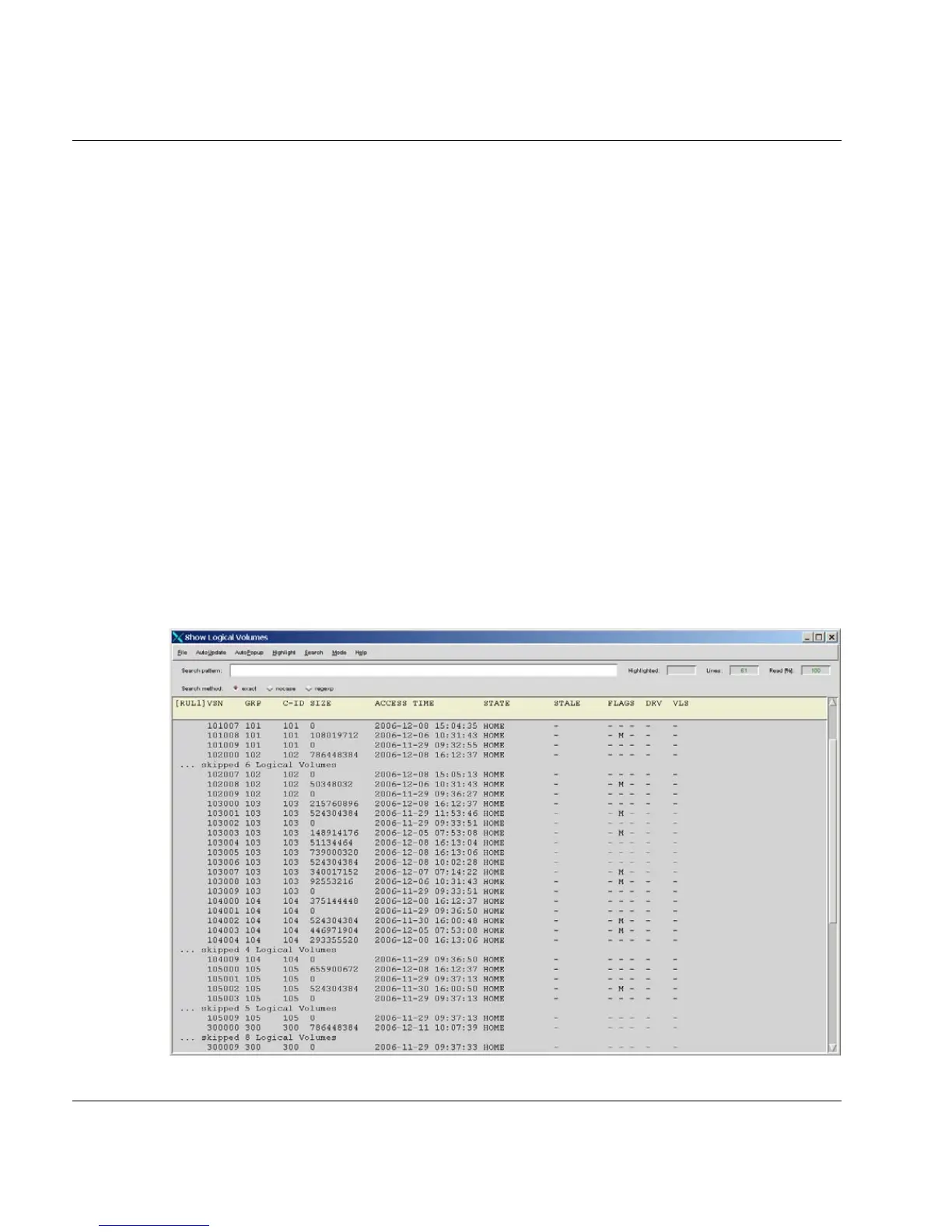

Example 1
Output window when overview is set:
