208 U41117-J-Z125-7-76
Function bar GXCC

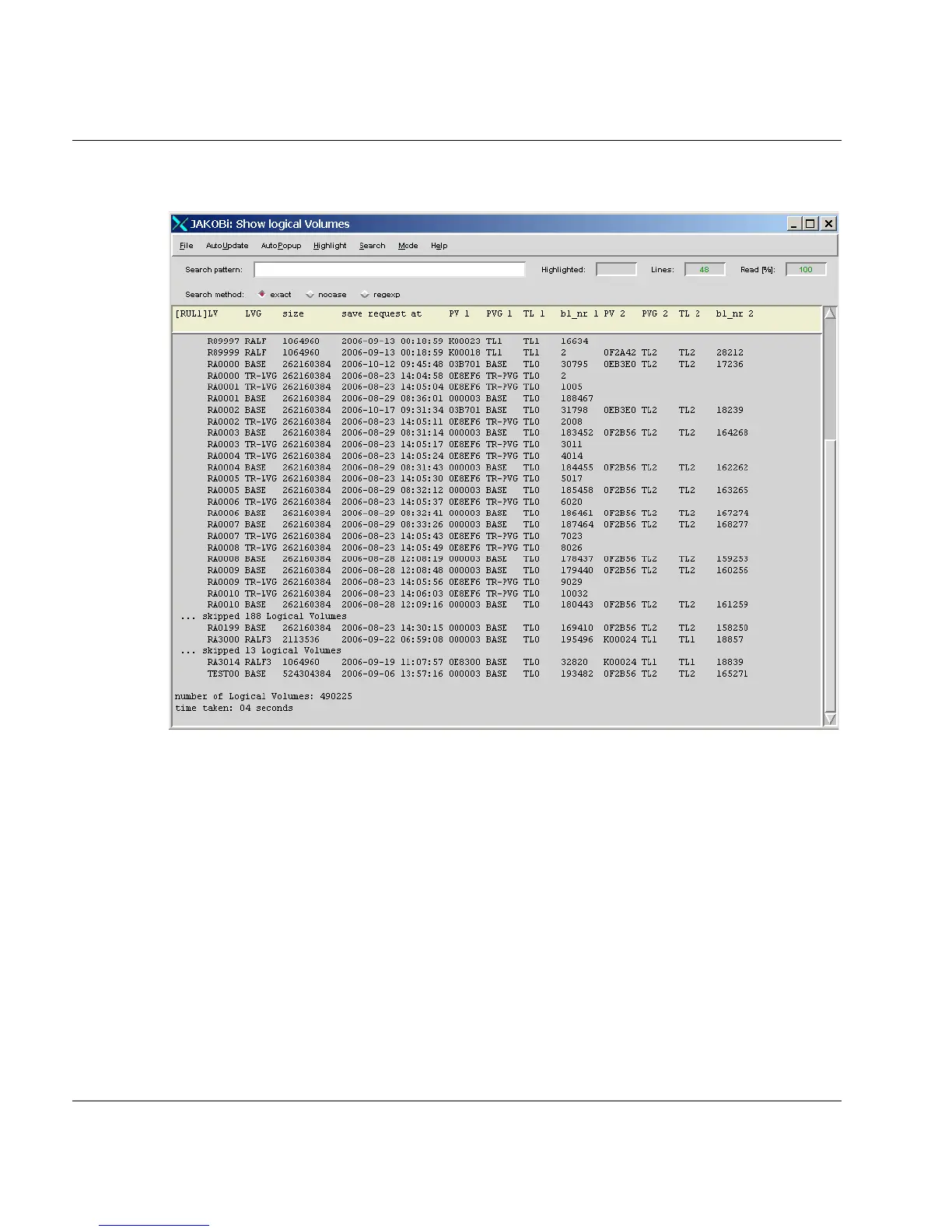

The logical volumes are displayed in the following window:
PLM-specific data of the LVs is output:
LV Name of the LV
LVG Name of the LV group
size Size of the LV
save request at Save date and time: The save request for the LV was accepted by the
PLM at this time.
PV 1 PV on which the current map of the LV is stored. This PV is located in
the PVG which is specified in the PVG 1 column.
PVG 1 PVG to which the LV is connected.
TL 1 Tape library in which the PV specified in the PV 1 column is located.
bl_nr 1 Block in the PV which is specified in the PV 1 column.
PV 2 PV on which the current map of the LV is stored a second time (Dual
Save).
PVG 2 Second PVG to which the LV is connected (Dual Save).
TL 2 Tape library in which the PV specified in the PV 2 column is located.
bl_nr 2 Block in the PV which is specified in the PV 2 column.
