308 U41117-J-Z125-7-76
History diagrams Global Status

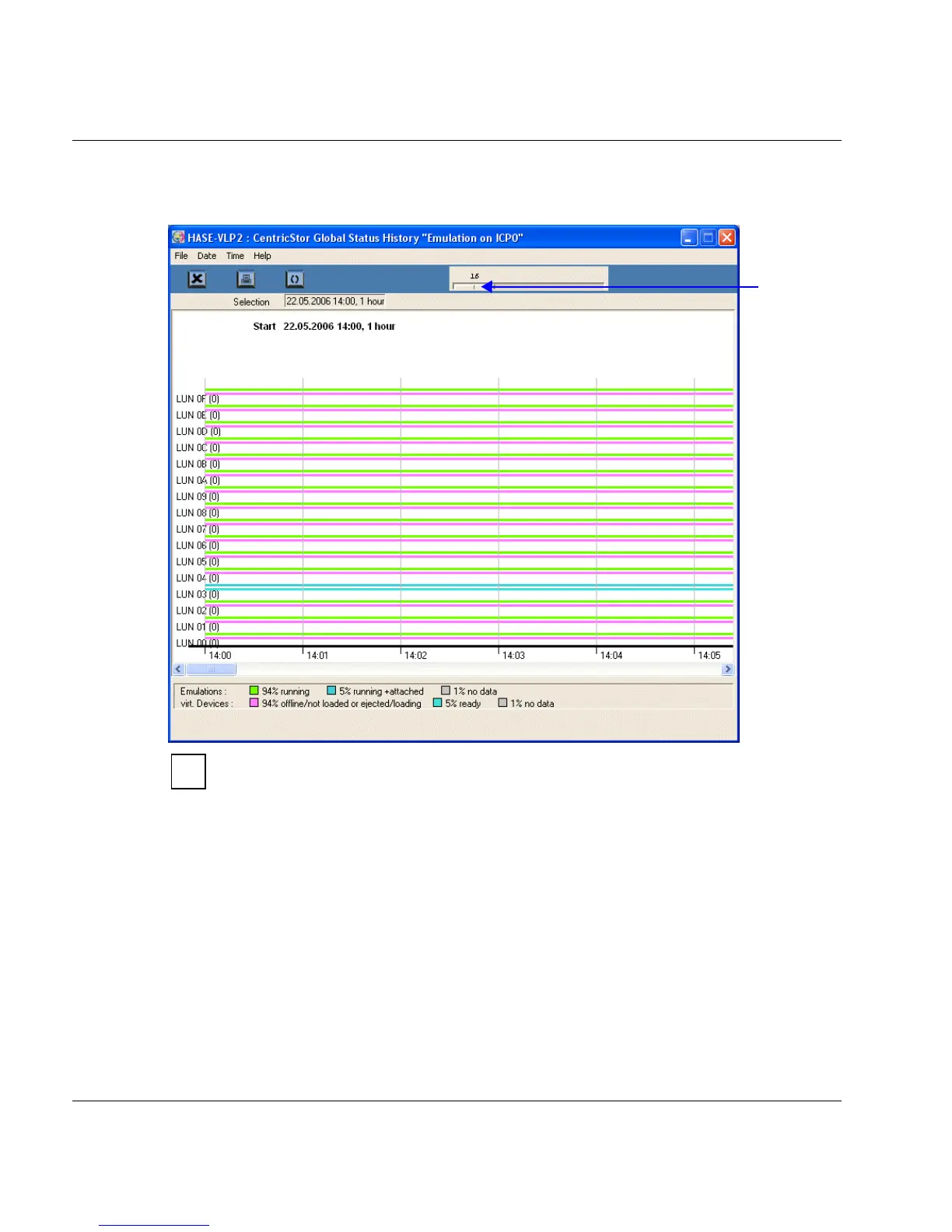

Outputs for CentricStor < V3.1D (read_log protocol)
If more than 16 emulations are defined, a slider is displayed in the button bar. You
can use this to select which group of 16 emulations is to be displayed.
The presentation period is set permanently to one hour.
The key at the bottom of the window describes the meaning of the colors of the lines in the
picture, i.e. statuses. The percentage share of each status in the period shown is also dis-
played.
Each line pair shows the status of the emulation (upper line) and that of the relevant virtual
drive (lower line).
Slider
i
