U41117-J-Z125-7-76 51

CentricStor - Virtual Tape Library Optional system functions

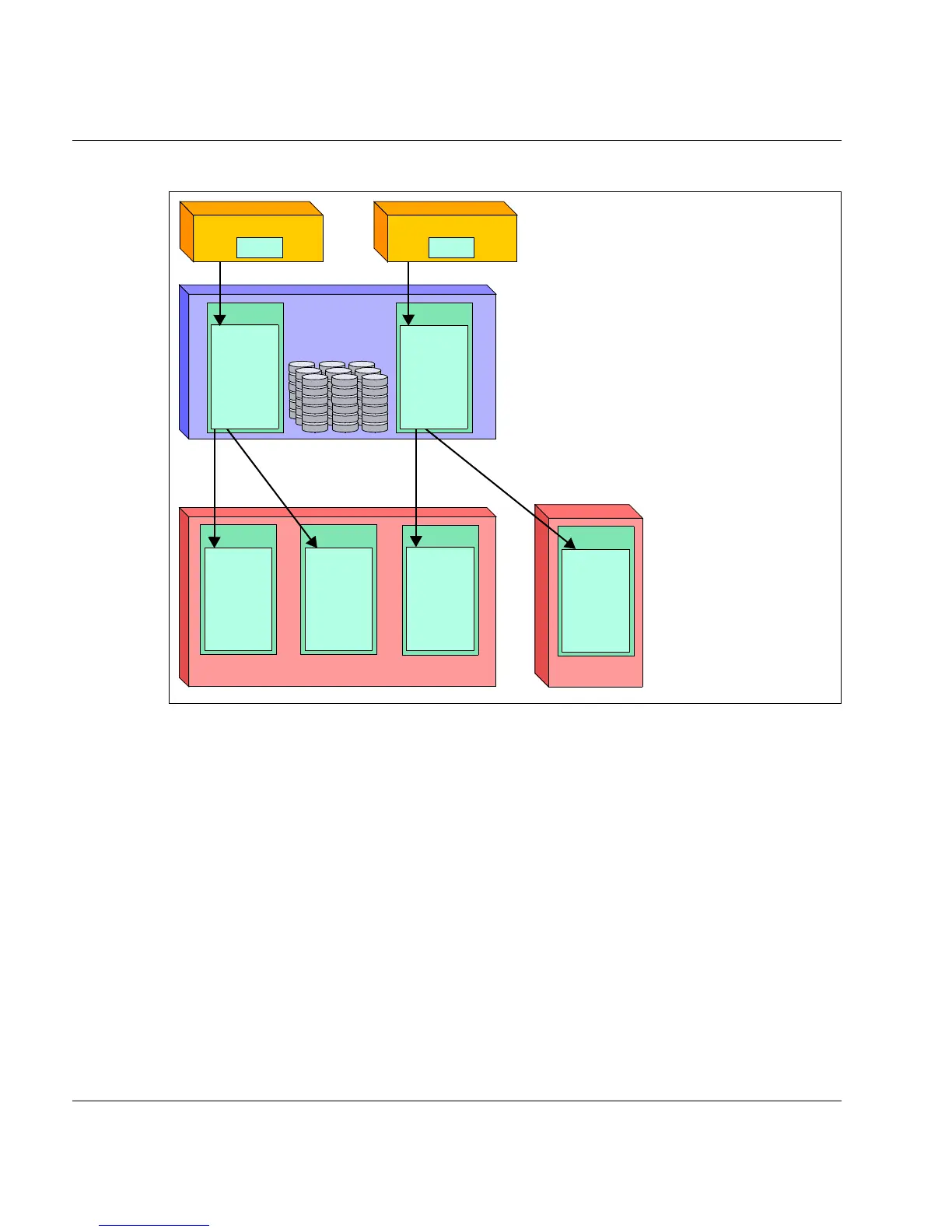

Figure 17: Example of Dual Save functionality

In accordance with the assignment rules for the volume group functionality (see page 64),

the logical volumes from LVG 1 (LV0001-LV3000) are mirrored on the physical volumes of

PVG 1 (PV0001-PV0300) and PVG 2 (PV0301-PV0600) in the robot Archive1. The logical

volumes of LVG 2 (LV3001-LV6000) are duplicated in Archive1 on PVG 3 (PV0701-

PV0800) and in Archive2 on PVG 4 (PV0801-PV0900), where the two robots are located

some distance apart.

LVG 1 LVG 2

CentricStor

PV0001

PV0002

PV0003

...........

PV0300

PVG 1

PV0301

PV0302

PV0303

...........

PV0600

PVG 2

PV0701

PV0702

PV0703

...........

PV0800

PVG 3

PV0801

PV0802

PV0803

...........

PV0900

PVG 4

Archive1

Archive2

LV0001

LV0002

LV0003

...........

LV3000

LV3001

LV3002

LV3003

...........

LV6000

Host1

Host2

LVG 1

LVG2
