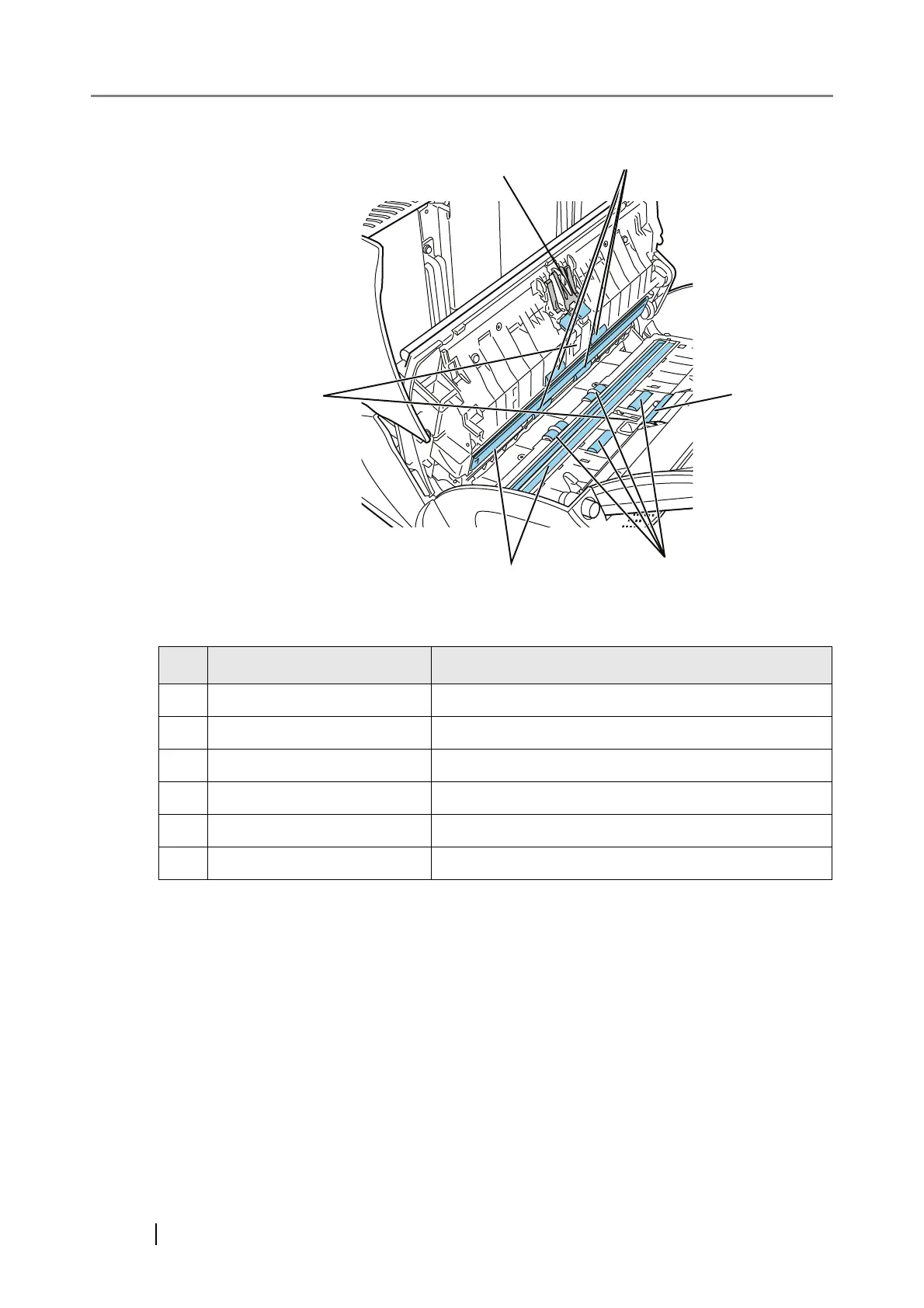

2. Clean the following parts with a soft cloth moistened with Cleaner F1.
No. Part name Cleaning method
1 Pad assy Refer to "Pad assy" (page 429).
2 Feed rollers (× 4) Refer to "Feed rollers" (page 430).
3 Pick roller (× 1) Refer to "Pick roller" (page 431).
4 Idler rollers (× 4) Refer to "Idler rollers" (page 431).
5 Glass scanner windows (× 2) Refer to "Glass scanner windows" (page 431).
6 Ultrasonic sensors (× 2) Refer to "Ultrasonic sensors" (page 431).
1. Pad assy
3. Pick rolle
2. Feed rollers
6. Ultrasonic sensors
4. Idler rollers
5. Glass scanner windows
