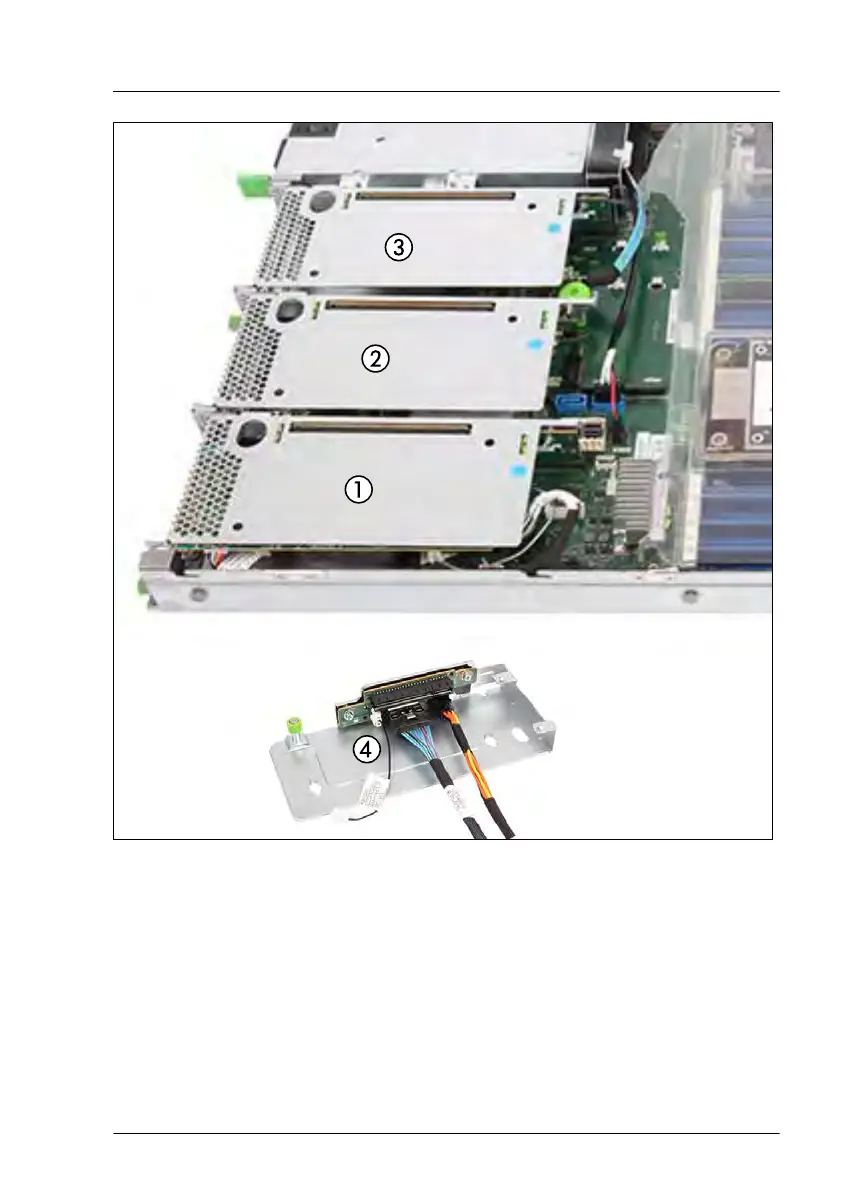

Figure 116: Numbering riser modules
1 Riser module 1, offers slot 1
2
Riser module 2, offers slot 2
3
Riser module 3, offers slot 3
4 Internal RAID riser module, offers riser
slot
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 197
