Example: EP540i

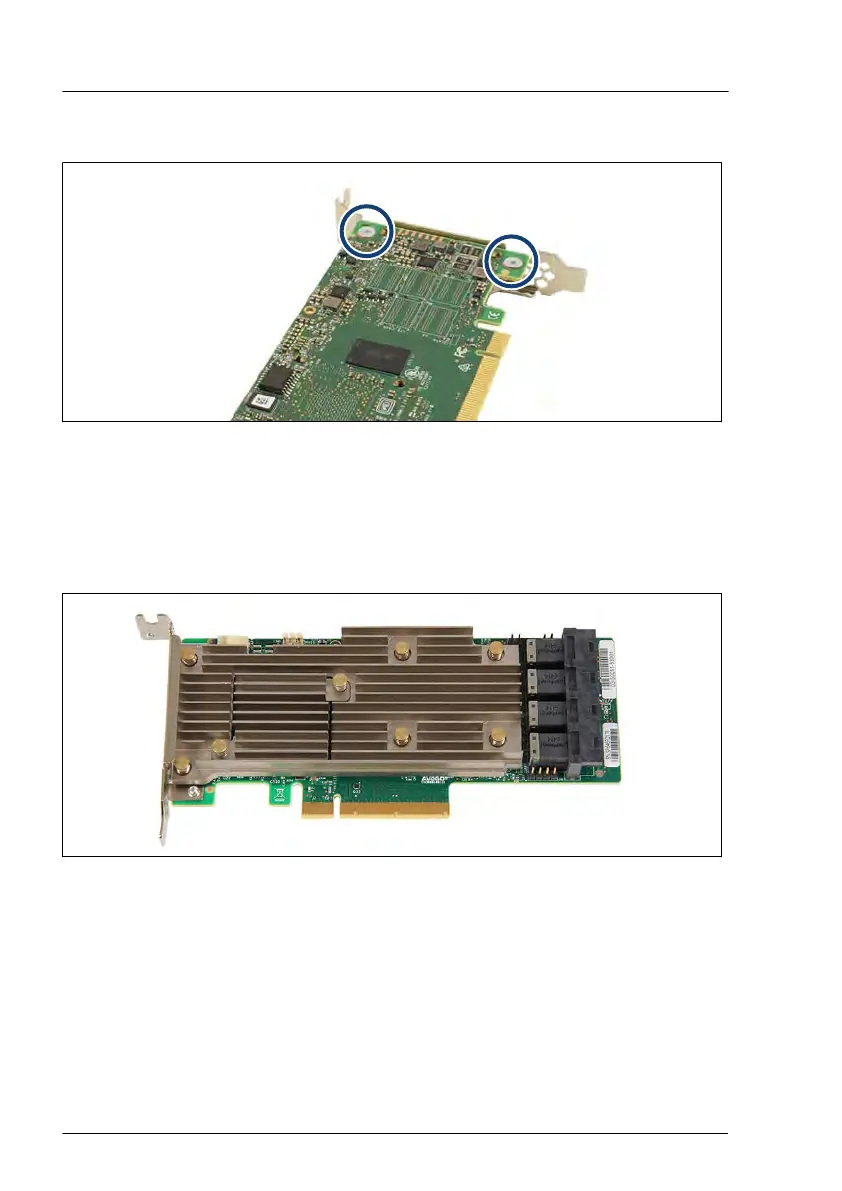

Figure 118: Placing the slot bracket
▶
Turn the controller to his bottom side.
▶
Place the controller on the slot bracket.
▶
Secure the slot bracket to the expansion card with two screws (see circles).
Figure 119: EP540i with installed slot bracket
▶
Turn the controller to his top side.
Expansion cards and backup units
200 Upgrade and Maintenance Manual RX2530 M6
