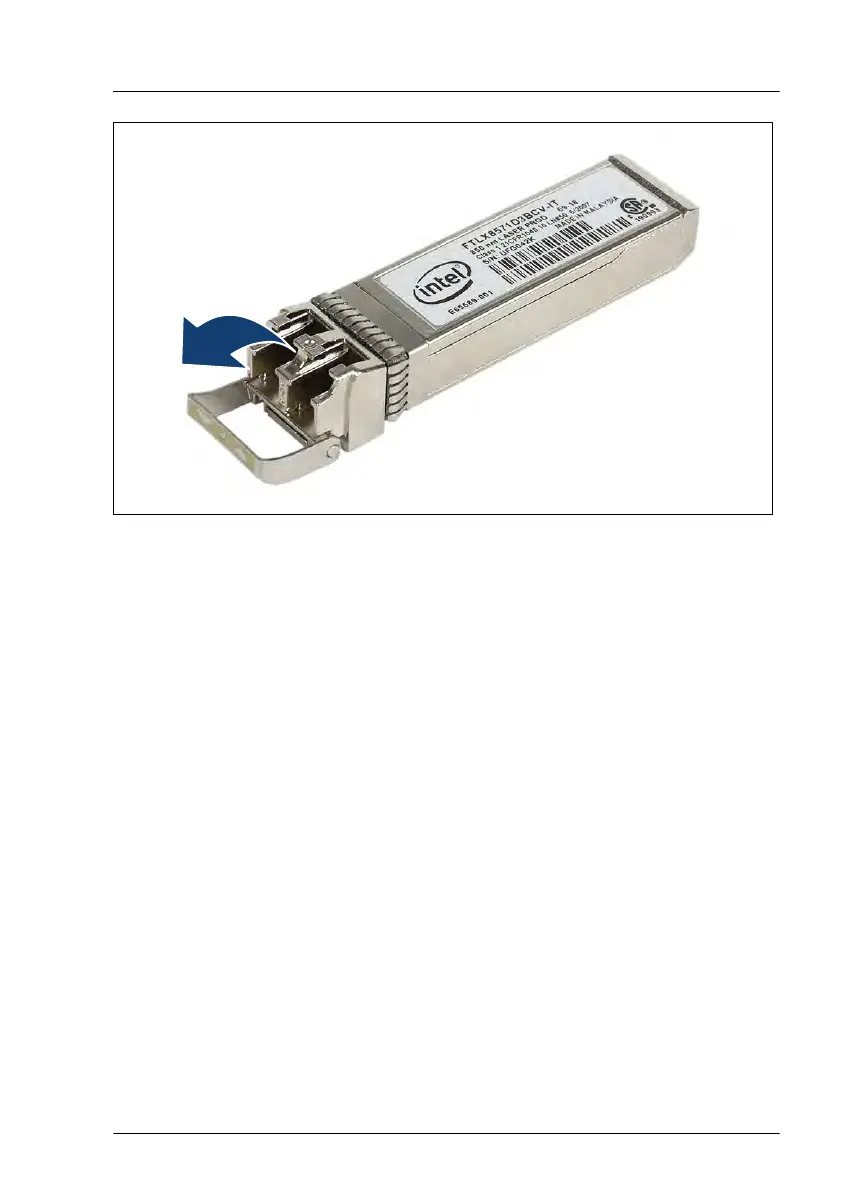

Figure 121: Unlatching the locking bail

▶

Carefully unlatch and fold down the locking bail on the SFP+ transceiver

module.

Expansion cards and backup units

RX2530 M6 Upgrade and Maintenance Manual 203
