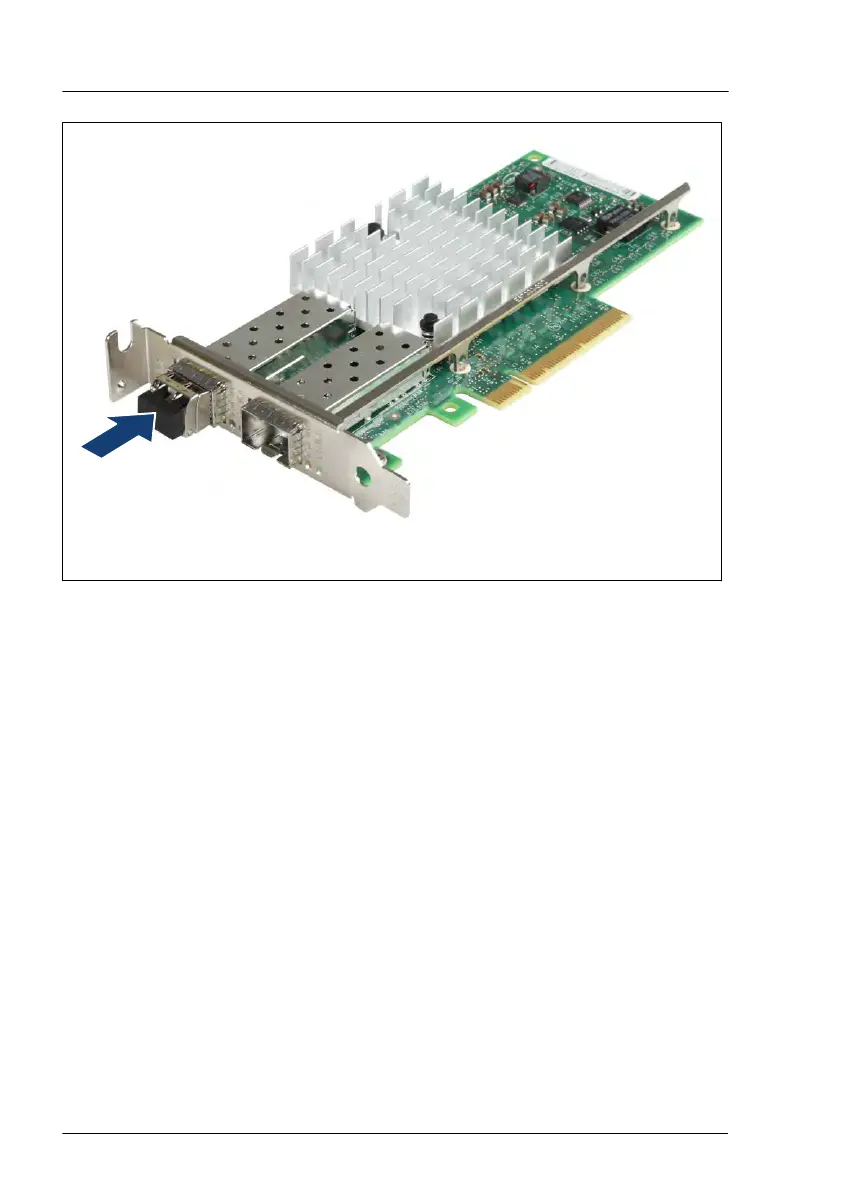

Figure 124: Installing the protective cap

▶

If the SFP+ transceiver module is not immediately connected to an LC

connector, attach the protective cap to the SFP+ transceiver module.

Expansion cards and backup units

206 Upgrade and Maintenance Manual RX2530 M6
