Fujitsu PRIMERGY RX2530 M6

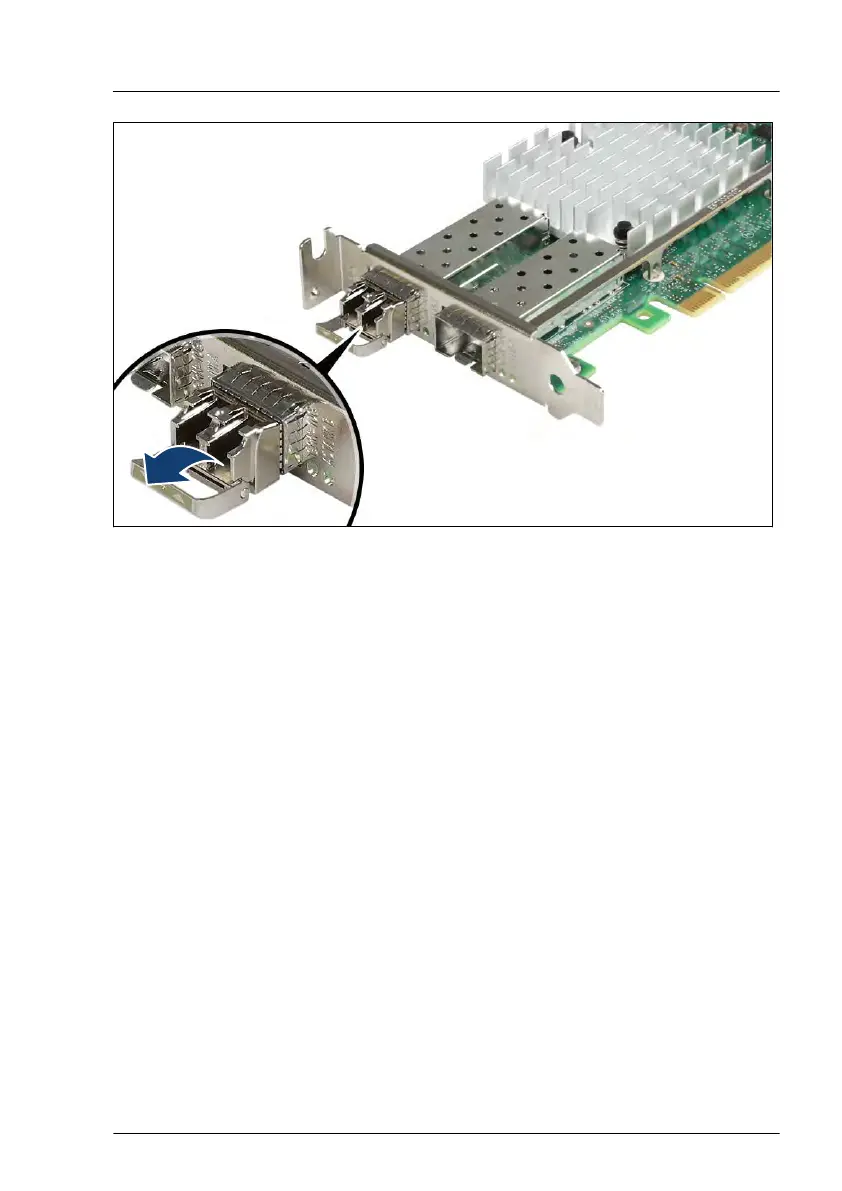

Figure 127: Unlatching the locking bail
▶
Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 209
