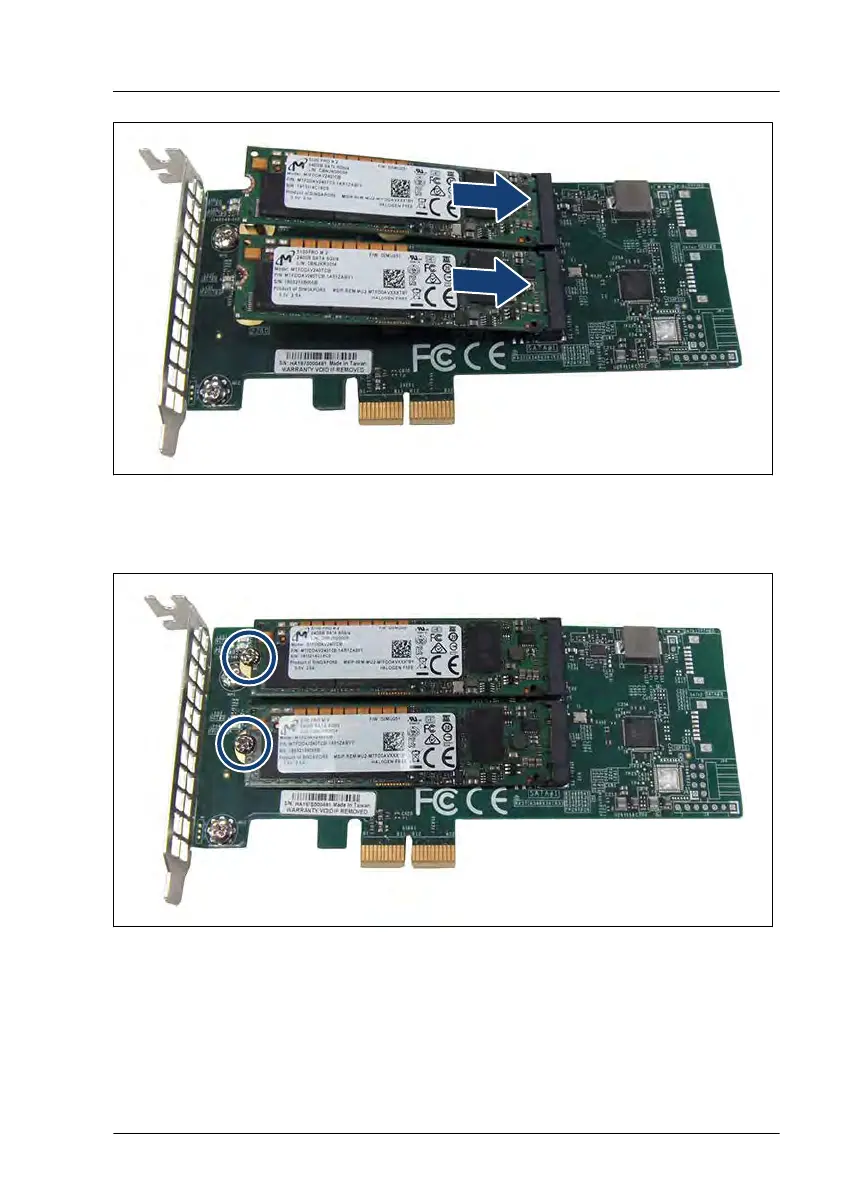

Figure 147: Installing M.2 SSDs (A)
▶
Insert the two M.2 SDDs in a slight angle.
Figure 148: Installing M.2 SSDs (B)
▶
Fasten each M.2 SSD with one screw (see circles).
Expansion cards and backup units
RX2530 M6
Upgrade and Maintenance Manual
227
226
228
