Removing the expansion card
▶
If necessary, disconnect the cables from the expansion card.

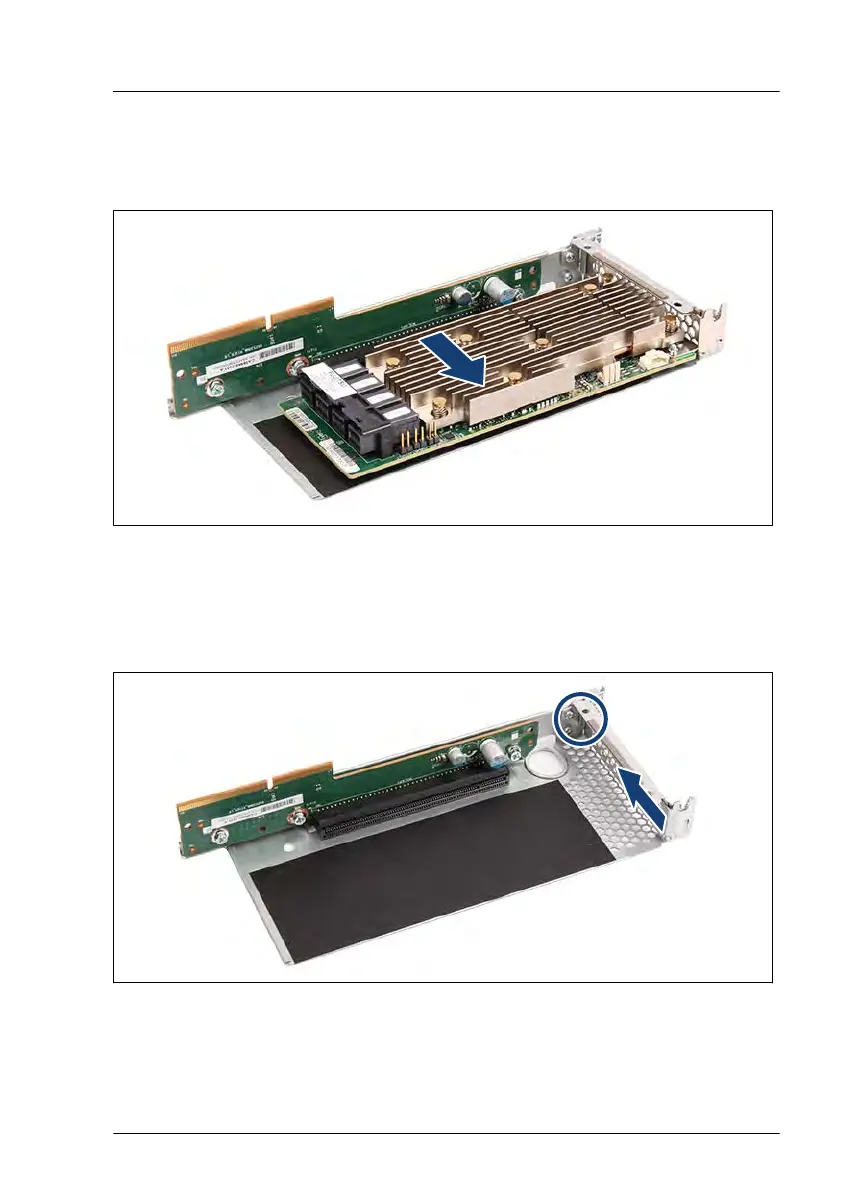

Figure 149: Removing the expansion card - example riser module 1
▶
Pull out the expansion card from the riser card slot.
Installing the slot cover
Figure 150: Installing the slot cover - example riser module 1
▶
Insert the slot cover
. Make sure that the lug on the slot cover clicks into
place in the corresponding bracket (see circle).
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 229
