Examples FBU cabling with two FBUs

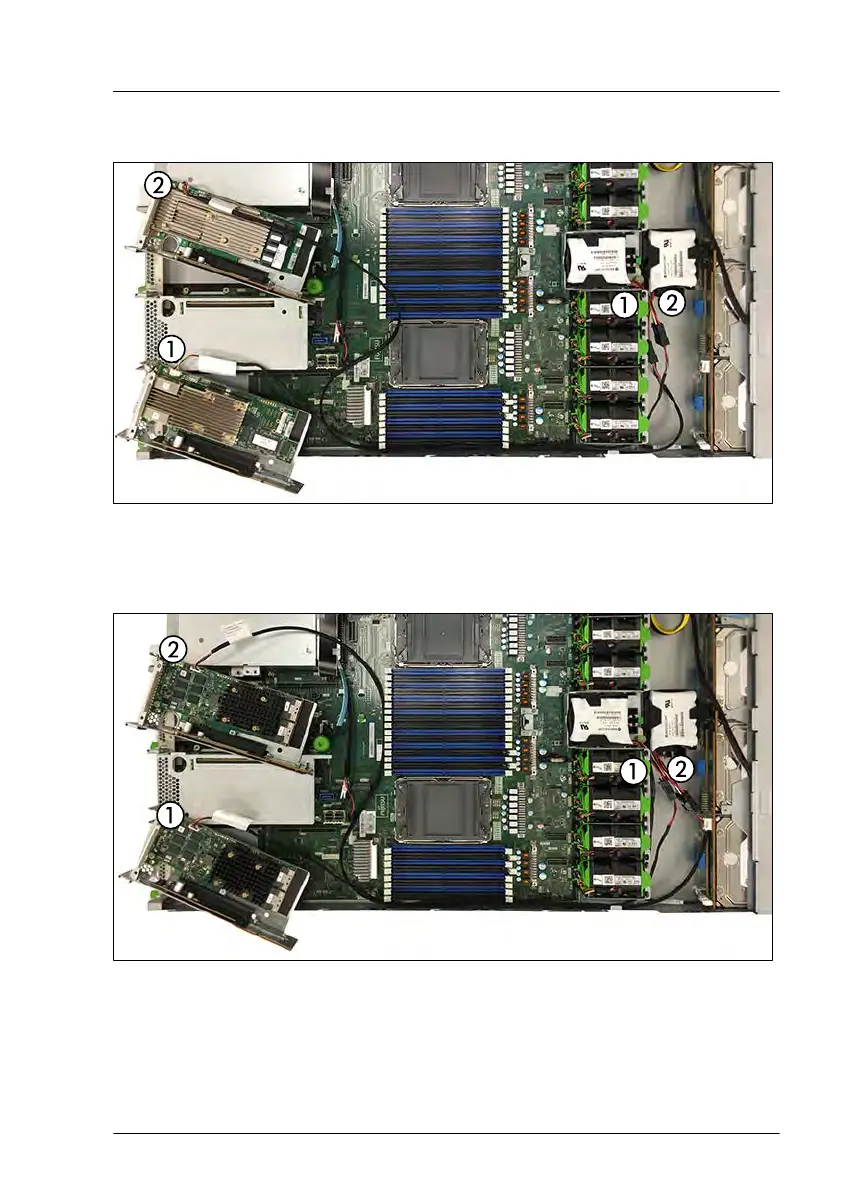

Figure 178: 2x FBUs, 2x SAS EP5xxi RAID controller in slot 1 and slot 3

1 Cable to FBU 1 and SAS EP5xxi RAID

controller

2 Cable to FBU 2 and SAS EP5xxi RAID

controller

Figure 179: 2x FBUs, 2x SAS EP6xxi RAID controller in slot 1 and slot 3

1 Cable to FBU 1 and SAS EP6xxi RAID

controller

2 Cable to FBU 2 and SAS EP6xxi RAID

controller

Expansion cards and backup units

RX2530 M6 Upgrade and Maintenance Manual 257
