Removing the FBU

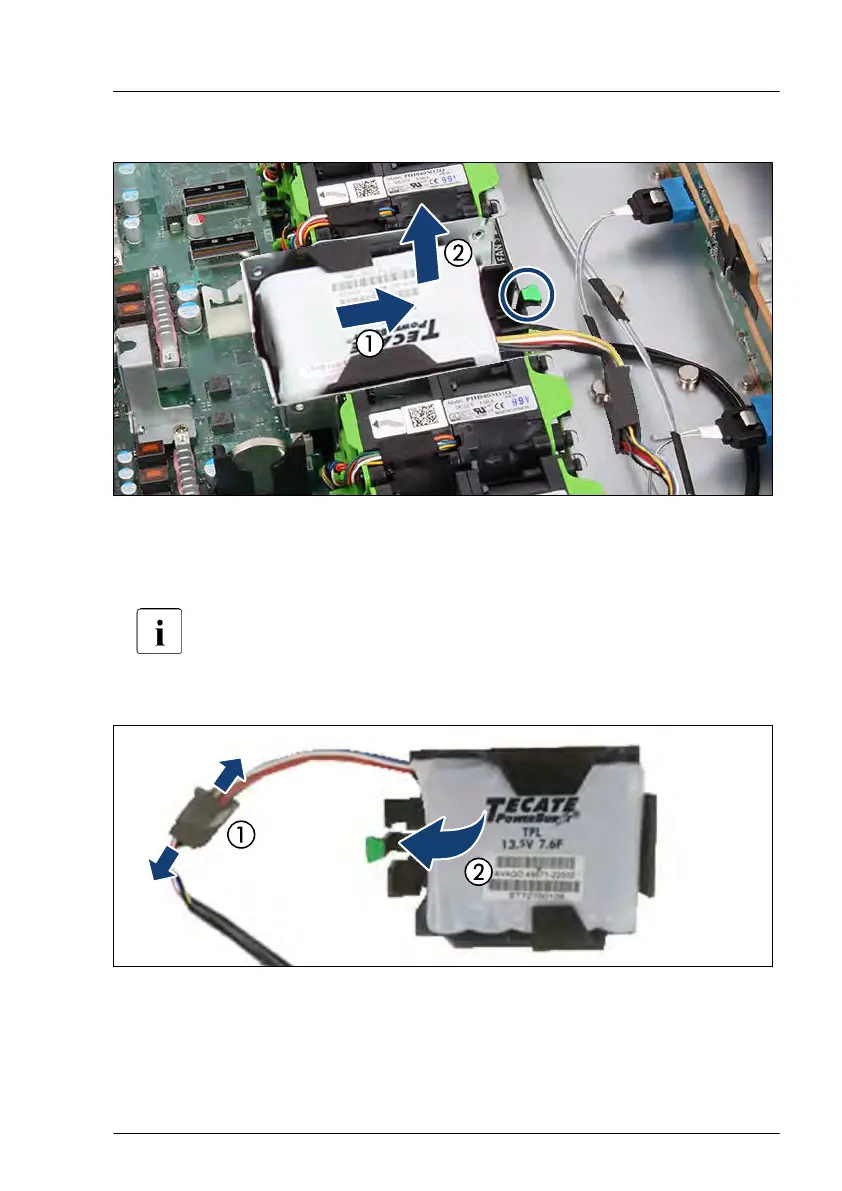

Figure 180: Removing the FBU with the holder
▶
Slide the holder in direction of the arrow as far as it will go (1) while lifting up
the green locking handle on the holder (see circle).
After that, the bolts will rest in the wide ends of the keyhole slots on
the holder.
▶
Take out the FBU with the holder (2).
Figure 181: Removing the FBU from the holder
▶
Disconnect the FBU adapter cable from the FBU cable (1).
▶
Pull the FBU at a slight angle out of the holder (2).
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 259
