CAUTION
Depending on the configuration, different heat sinks are necessary!
▶
Please check, if you ordered the correct heat sink.

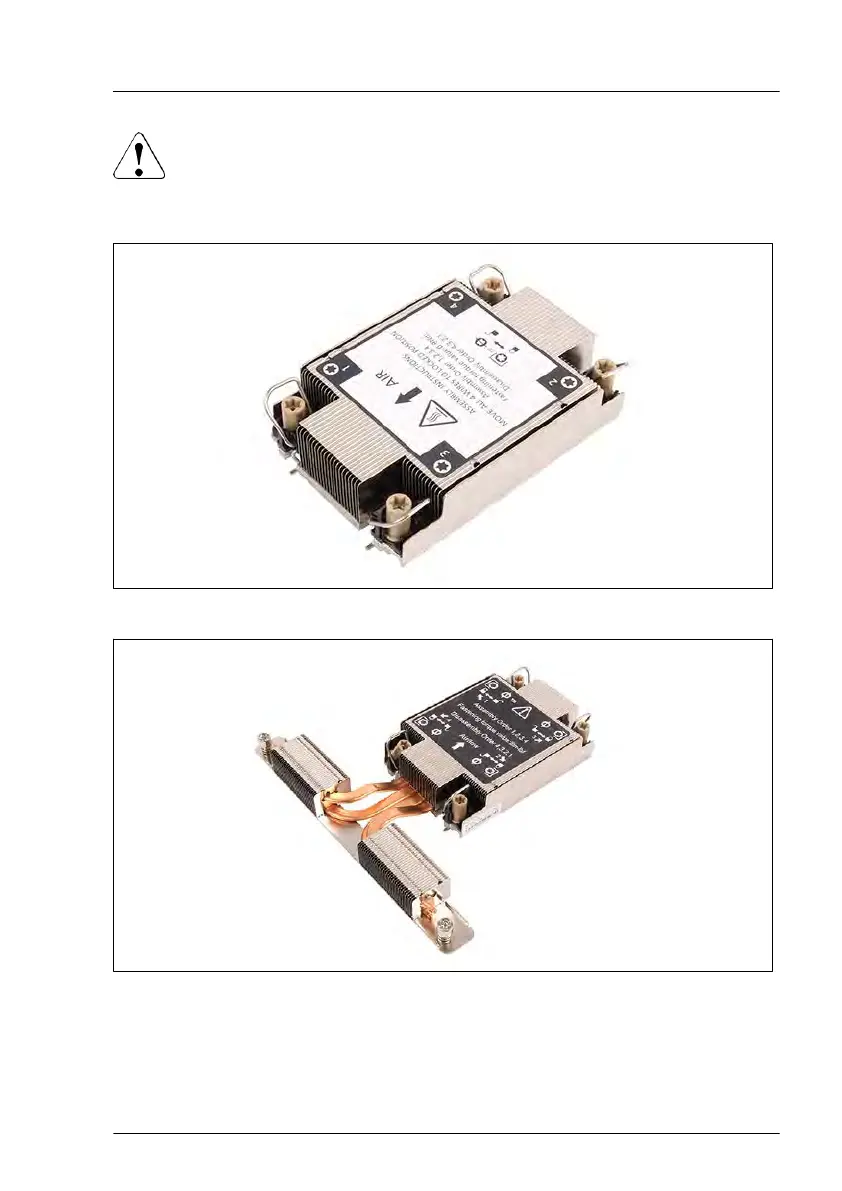

Figure 189: 1U CPU heat sink
Figure 190: EV
AC CPU heat sink
Processor (CPU)
RX2530 M6
Upgrade and Maintenance Manual
281
280
282
