Fujitsu PRIMERGY RX2530 M6

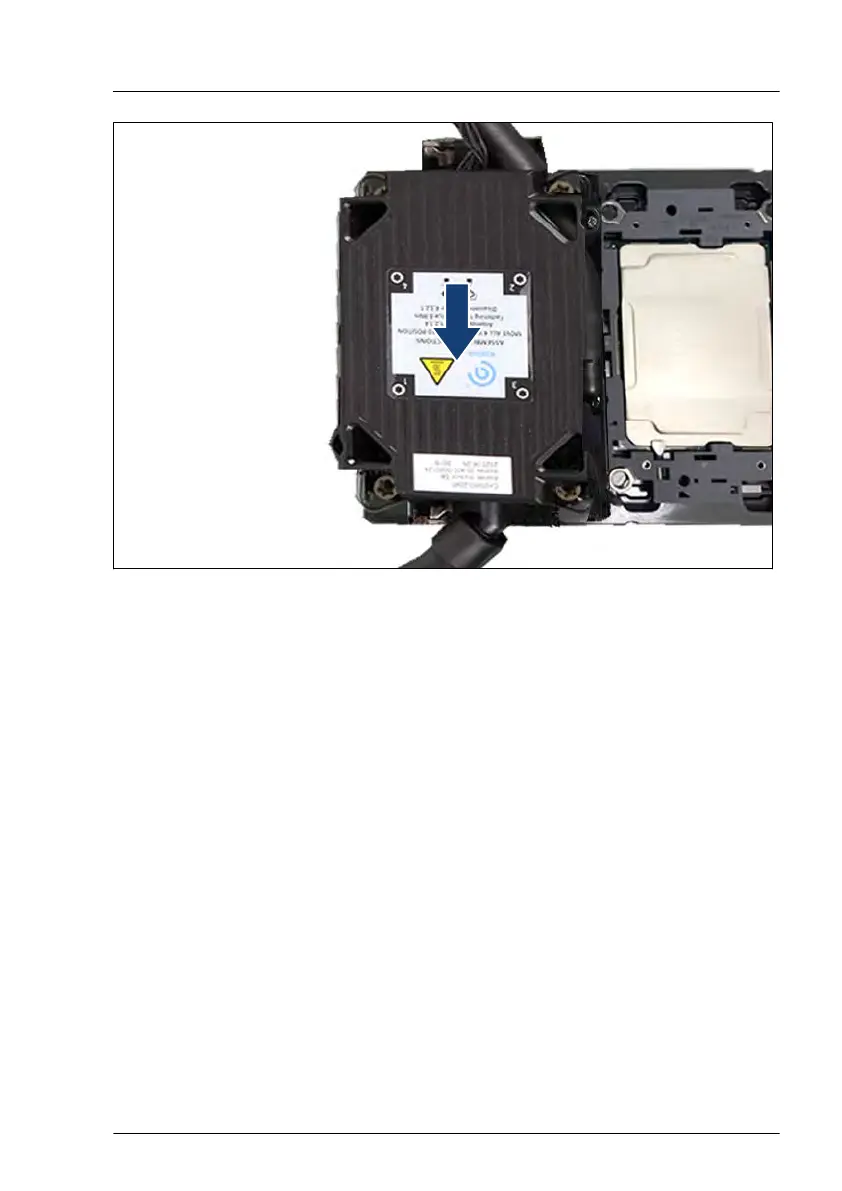

Figure 215: Installing the LC heat sink onto the CPU frame
▶
Place the LC heat sink onto the CPU frame.
▶
Prepare the second CPU and LC heat sink in the same way
.
▶
Hold the complete LC kit with both hands and position it onto the CPU
sockets.
Liquid cooling (LC)
RX2530 M6 Upgrade and Maintenance Manual 307
