Remove the riser module 2, see "Removing a riser module" on page 69.
Installing the iRMC microSD card

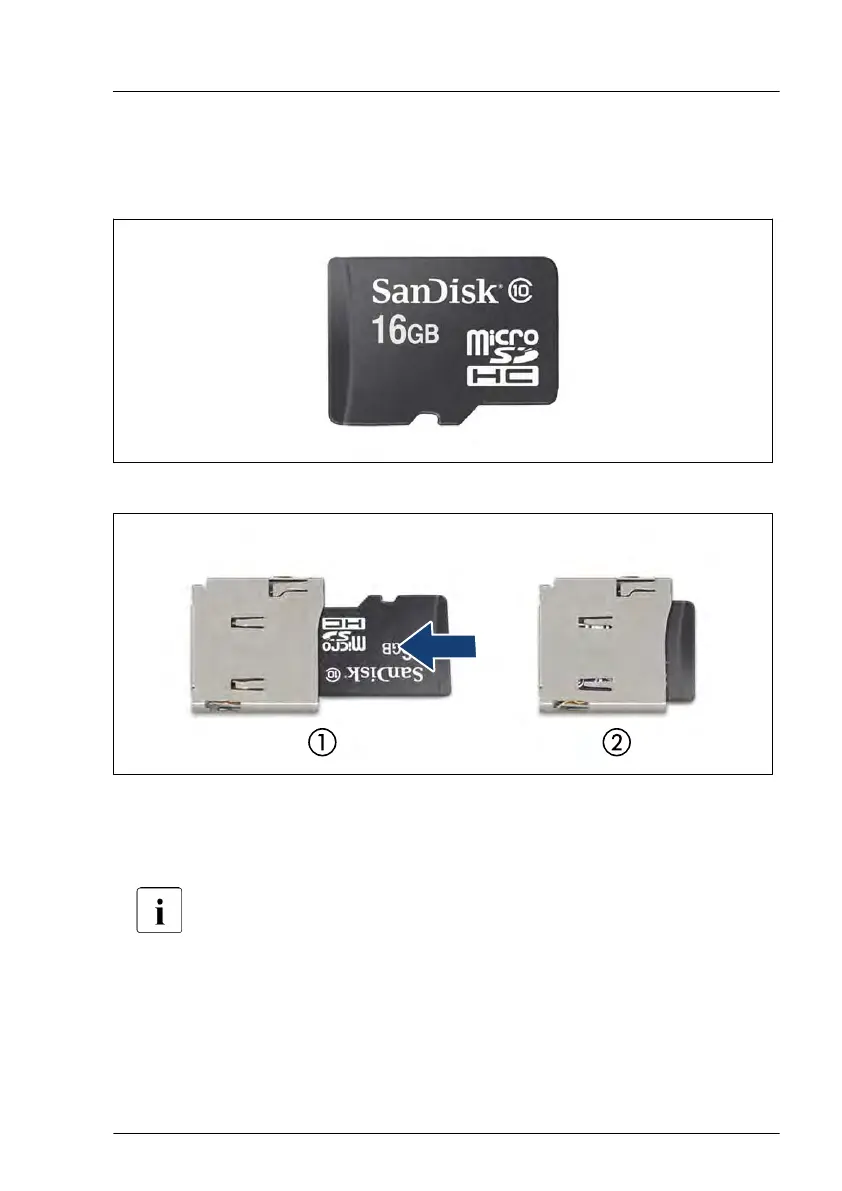

Figure 261: iRMC microSD card
Figure 262: Installing the iRMC microSD card
▶
With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) until it locks in place (2).
The onboard position of the microSD card slot can be found in
"Connectors and indicators on the system board" on page 406.
Concluding steps
▶
Install the riser module 2, see "Installing a riser module" on page
69
.
▶
"Reassembling" on page
57.
System board and components
RX2530 M6 Upgrade and Maintenance Manual 361
