The OCP modules (5, 7) are options (not valid for Japan). If no OCP module
has been ordered, you find dummy covers installed in these slots.

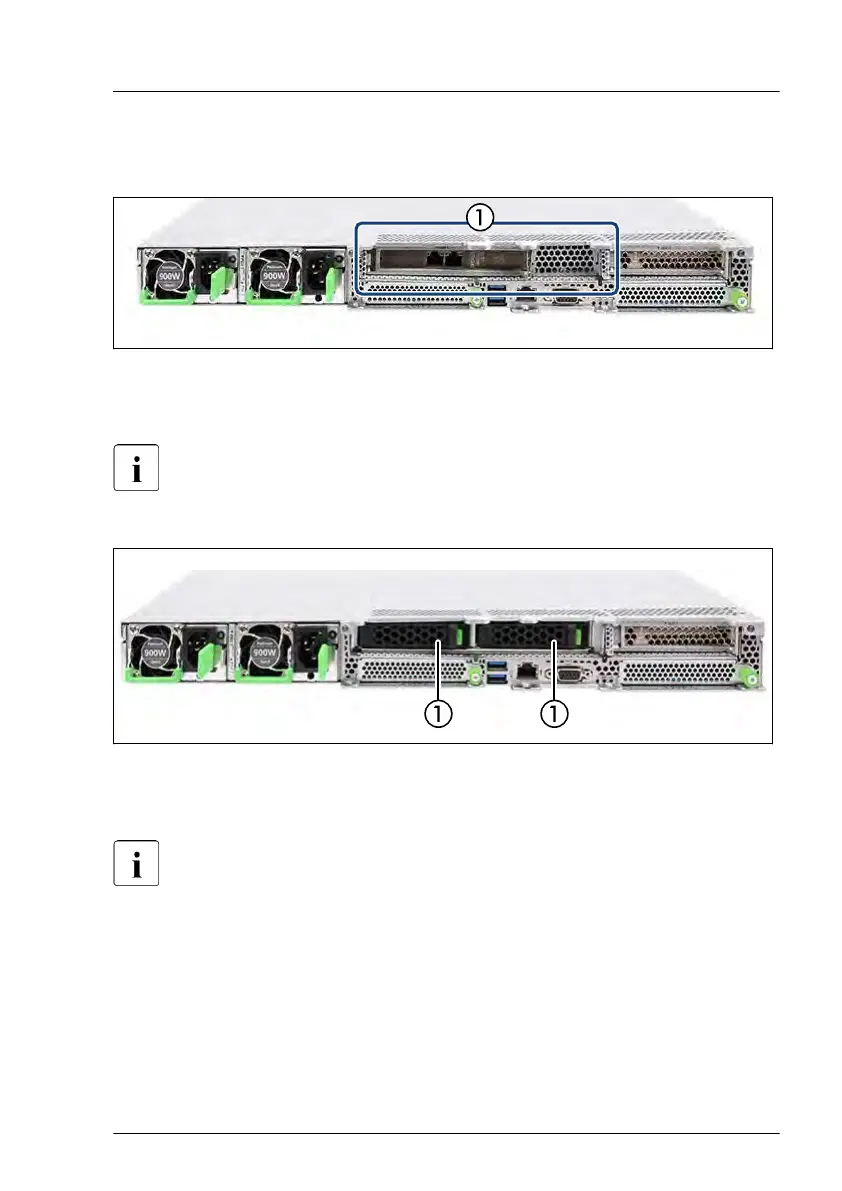

Figure 294: Rear side with full height riser module
1 Full height riser module
As an option, a full height riser module can be installed. In this case the
slot 2 is not available and slot 3 can be equipped with a full height
expansion card.
Figure 295: Rear side with HDDs/SSDs
1 HDD/SSD
As an option, a rear HDD/SSD cage can be installed. In this case riser
module 2 and riser module 3 are not available.
Appendix A
RX2530 M6 Upgrade and Maintenance Manual 401
