Fujitsu PRIMERGY RX2530 M6

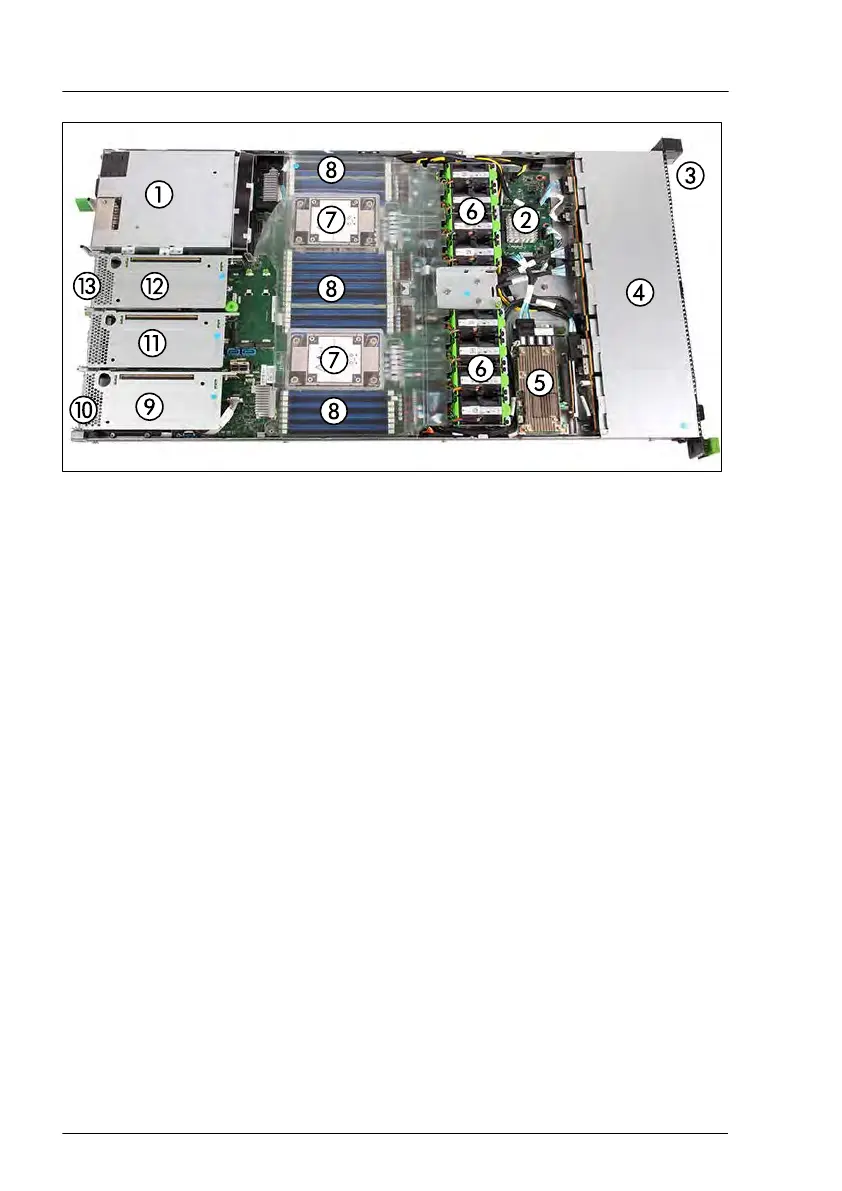

Figure 298: Interior (example 10x 2.5-inch HDDs/SSDs)
1 Up to 2 PSUs / dummy cover
2
SAS expander board
3 COP
4
Up to 10x 2.5-inch HDDs/SSDs /
dummy modules
5 Internal RAID riser module
6 Fan modules
7 CPUs
8 Main memory
9 Riser module 1
10 OCP module 1
11 Riser module 2
12 Riser module 3
13 OCP module 2
The OCP modules (10, 13) are options.
