Fujitsu PRIMERGY RX2530 M6

4RX2530 M6

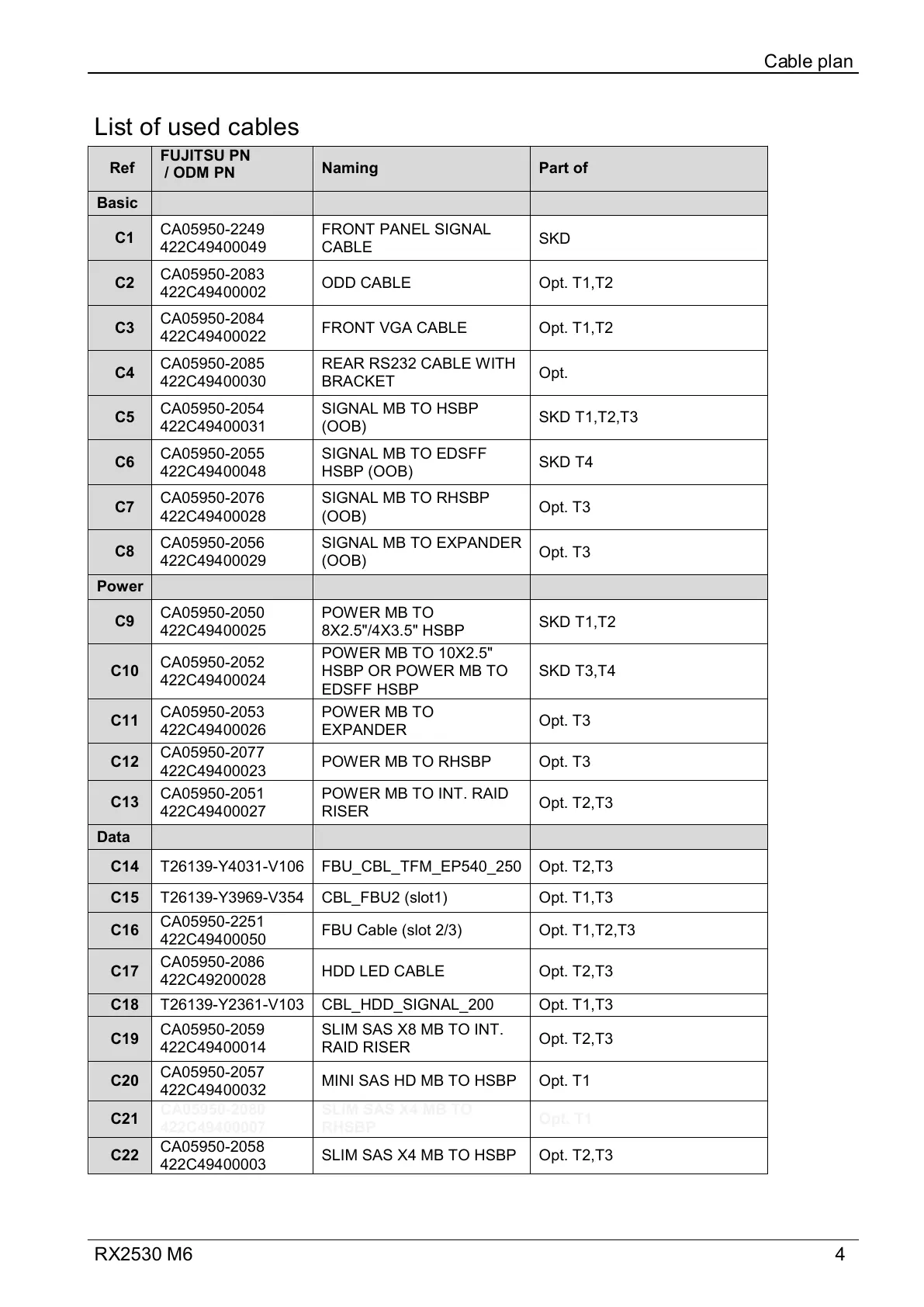

List of used cables
Cable plan
Ref
FUJITSU PN
/ ODM PN
Naming
Part of
Basic
C1
CA05950-2249
422C49400049
FRONT PANEL SIGNAL
CABLE
SKD
C2
CA05950-2083
422C49400002
ODD CABLE
Opt. T1,T2
C3
CA05950-2084
422C49400022
FRONT VGA CABLE
Opt. T1,T2
C4
CA05950-2085
422C49400030
REAR RS232 CABLE WITH
BRACKET
Opt.
C5
CA05950-2054
422C49400031
SIGNAL MB TO HSBP
(OOB)
SKD T1,T2,T3
C6
CA05950-2055
422C49400048
SIGNAL MB TO EDSFF
HSBP (OOB)
SKD T4
C7
CA05950-2076
422C49400028
SIGNAL MB TO RHSBP
(OOB)
Opt. T3
C8
CA05950-2056
422C49400029
SIGNAL MB TO EXPANDER
(OOB)
Opt. T3
Power
C9
CA05950-2050
422C49400025
POWER MB TO
8X2.5"/4X3.5" HSBP
SKD T1,T2
C10
CA05950-2052
422C49400024
POWER MB TO 10X2.5"
HSBP OR POWER MB TO
EDSFF HSBP
SKD T3,T4
C11
CA05950-2053
422C49400026
POWER MB TO
EXPANDER
Opt. T3
C12
CA05950-2077
422C49400023
POWER MB TO RHSBP
Opt. T3
C13
CA05950-2051
422C49400027
POWER MB TO INT. RAID
RISER
Opt. T2,T3
Data
C14
T26139-Y4031-V106
FBU_CBL_TFM_EP540_250
Opt. T2,T3
C15
T26139-Y3969-V354
CBL_FBU2 (slot1)
Opt. T1,T3
C16
CA05950-2251
422C49400050
FBU Cable (slot 2/3)
Opt. T1,T2,T3
C17
CA05950-2086
422C49200028
HDD LED CABLE
Opt. T2,T3
C18
T26139-Y2361-V103
CBL_HDD_SIGNAL_200
Opt. T1,T3
C19
CA05950-2059
422C49400014
SLIM SAS X8 MB TO INT.
RAID RISER
Opt. T2,T3
C20
CA05950-2057
422C49400032
MINI SAS HD MB TO HSBP
Opt. T1
C21
CA05950-2080
422C49400007
SLIM SAS X4 MB TO
RHSBP
Opt. T1
C22
CA05950-2058
422C49400003
SLIM SAS X4 MB TO HSBP
Opt. T2,T3
