Fujitsu PRIMERGY RX2530 M6

To Next Page

To Previous Page

9RX2530 M6

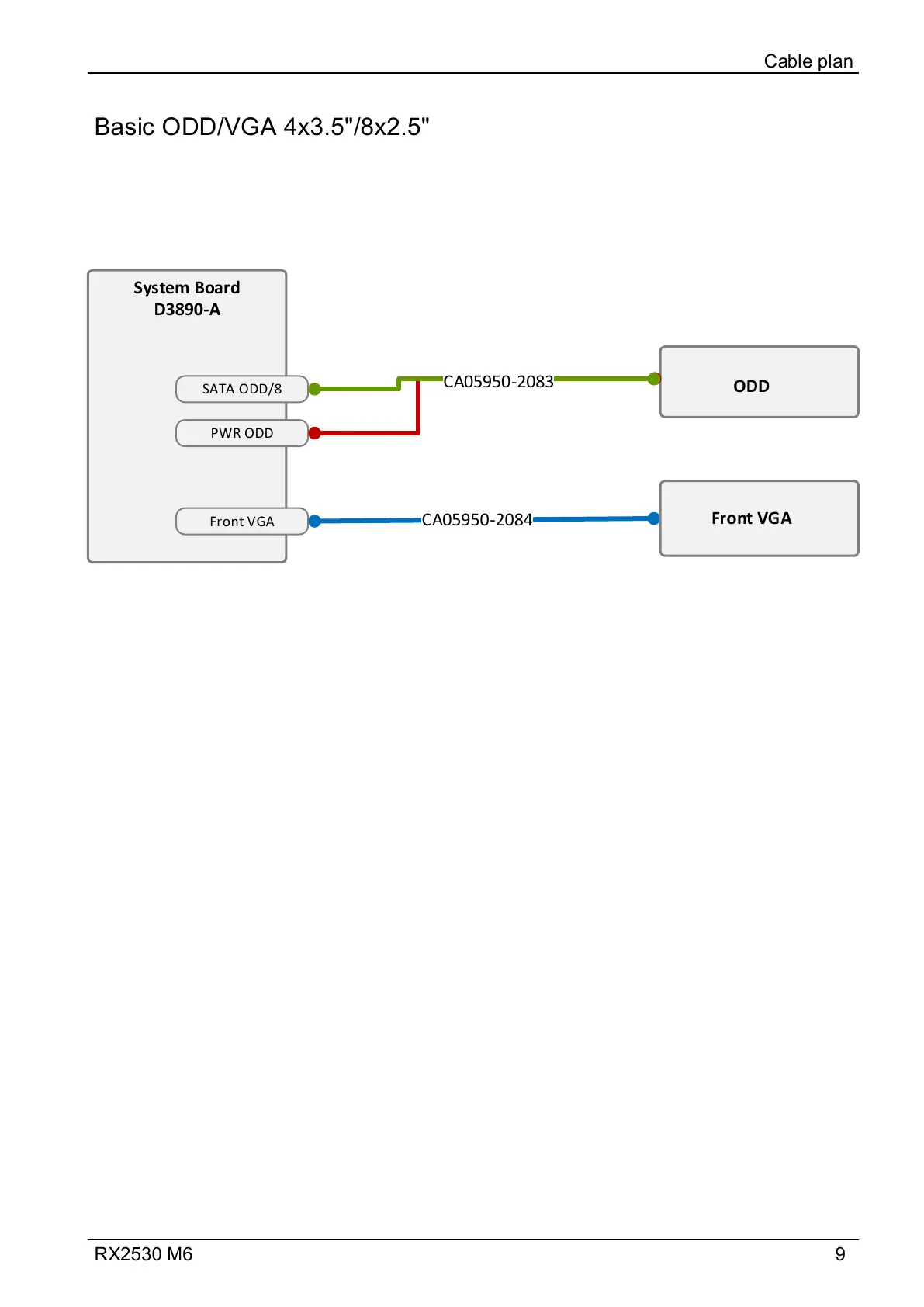

Basic ODD/VGA 4x3.5"/8x2.5"

Cable plan

System Board

D3890-A

PWR ODD

SATA ODD/8

Front VGA

CA05950-2084

Front VGA

ODD

CA05950-2083

Main Page
