Fujitsu PRIMERGY RX2530 M6

To Next Page

To Previous Page

10RX2530 M6

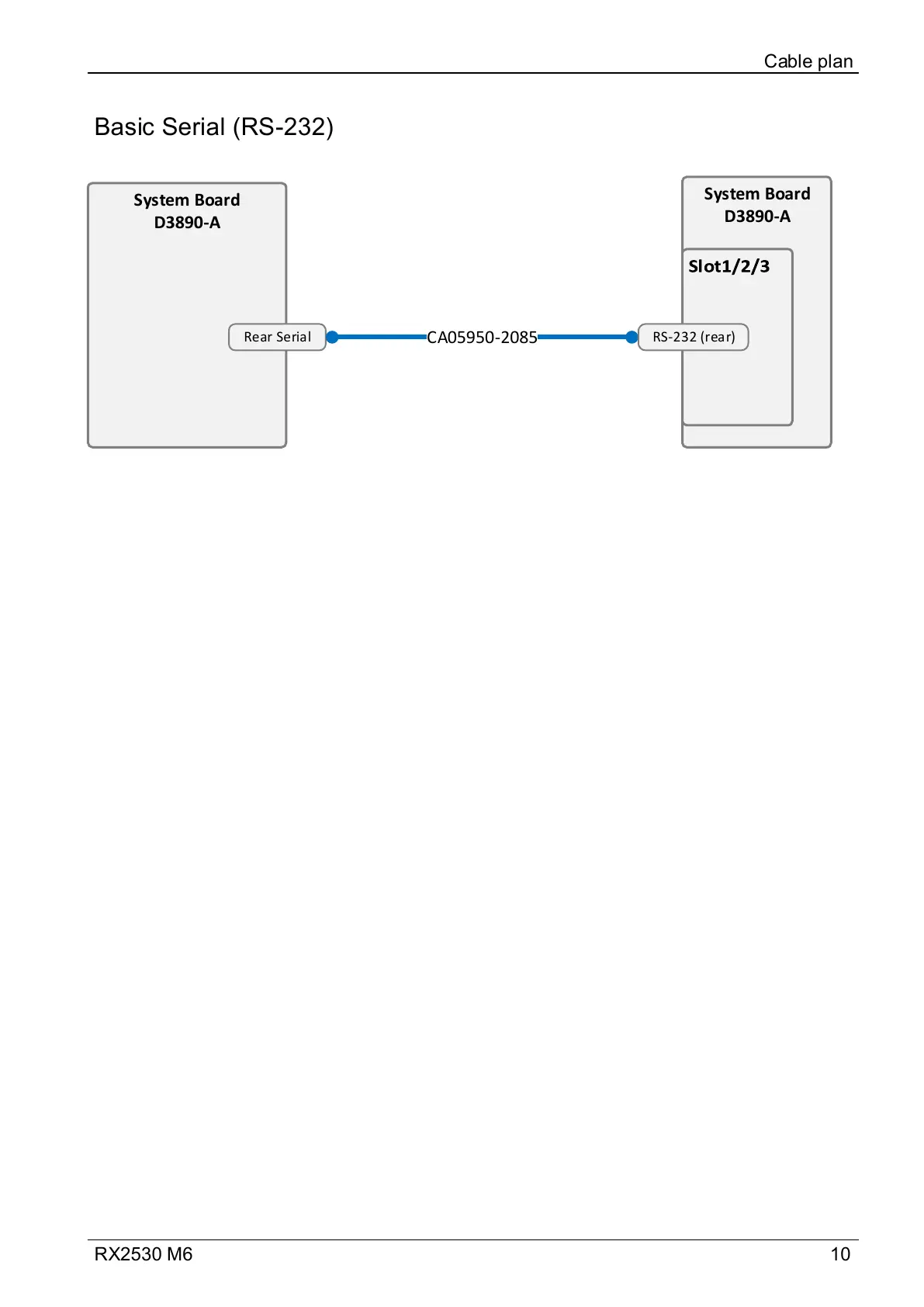

Basic Serial (RS-232)

Cable plan

System Board

D3890-A

Rear Serial

CA05950-2085

System Board

D3890-A

RS-232 (rear)

Main Page
