Fujitsu PRIMERGY RX2530 M6

To Next Page

To Previous Page

24RX2530 M6

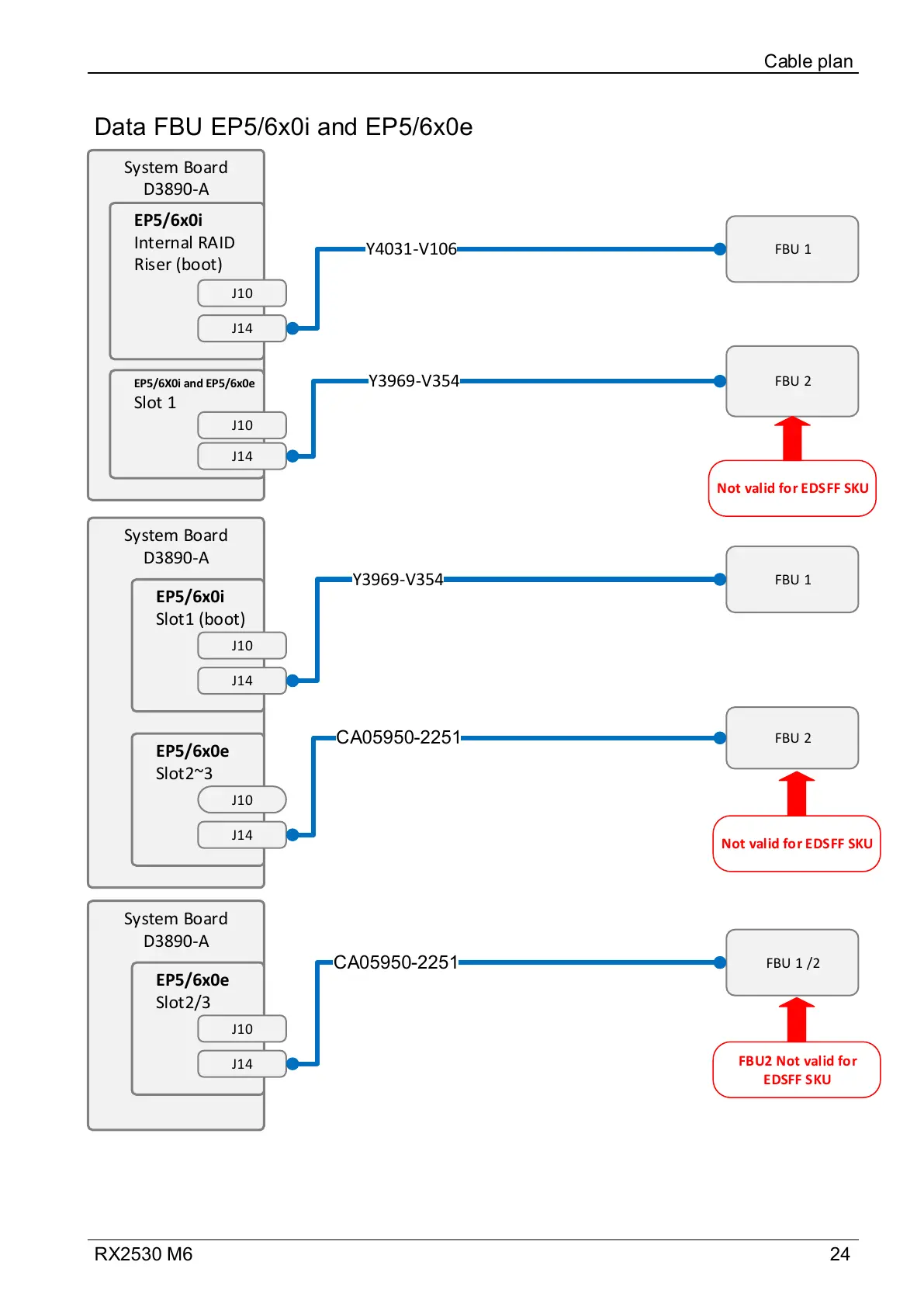

Data FBU EP5/6x0i and EP5/6x0e

Cable plan

System Board

D3890-A

EP5/6x0i

Internal RAID

Riser (boot)

J14

FBU 1

Y4031-V106

J10

EP5/6X0i and EP5/6x0e

Slot 1

J14

FBU 2

Y3969-V354

System Board

D3890-A

EP5/6x0i

Slot1 (boot)

J14

FBU 1

Y3969-V354

J10

EP5/6x0e

Slot2~3

J14

FBU 2

CA05950-2251

J10

System Board

D3890-A

EP5/6x0e

Slot2/3

J14

FBU 1 /2

CA05950-2251

J10

Not valid for EDSFF SKU

FBU2 Not valid for

EDSFF SKU

Not valid for EDSFF SKU
