25RX2530 M6

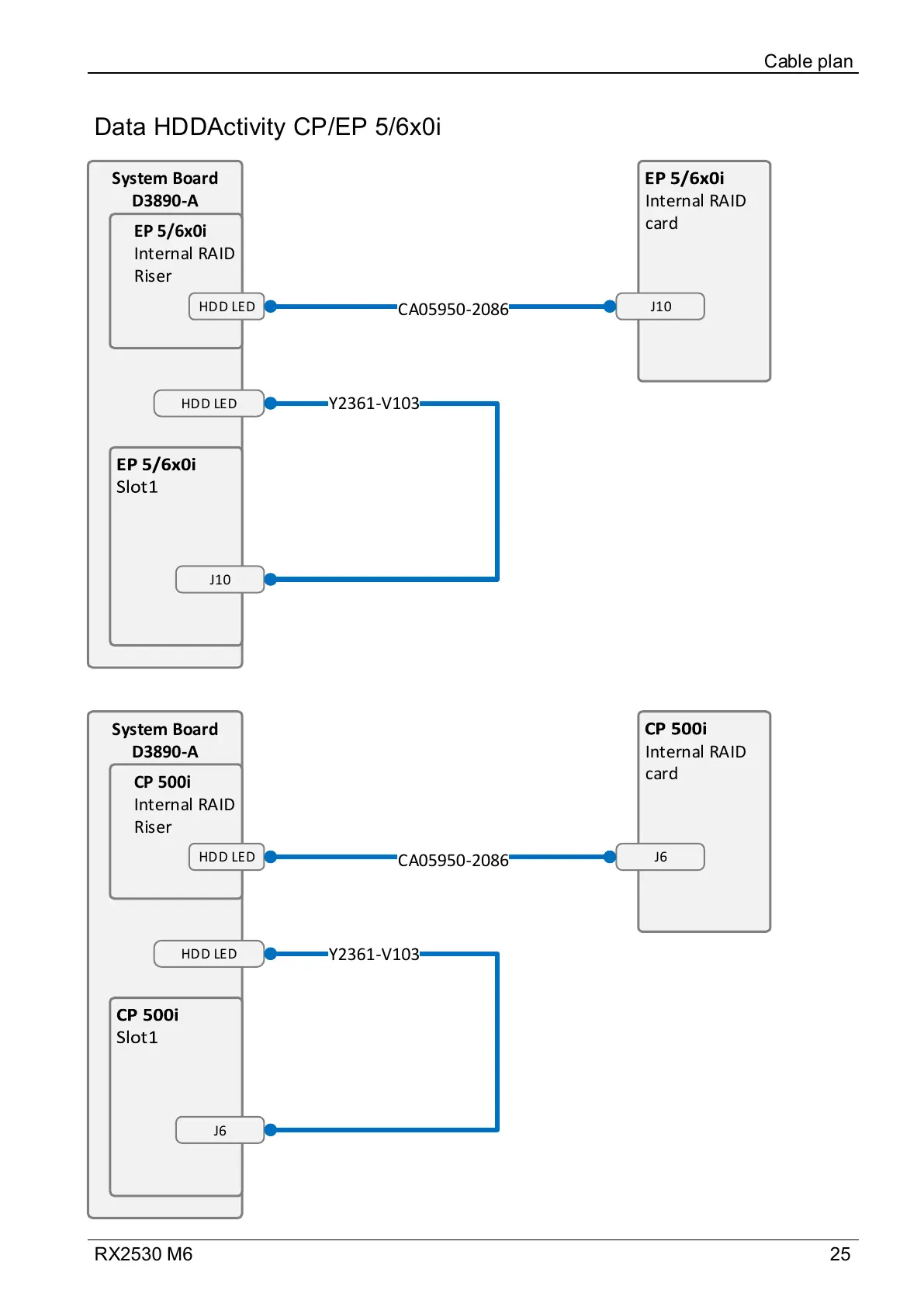

Data HDDActivity CP/EP 5/6x0i

Cable plan

System Board

D3890-A

J10

HDD LED

Y2361-V103

EP 5/6x0i

Internal RAID

Riser

Internal RAID

card

J10HDD LED

CA05950-2086

System Board

D3890-A

HDD LED

Y2361-V103

CP 500i

Internal RAID

Riser

Internal RAID

card

J6HDD LED

CA05950-2086
