30RX2530 M6

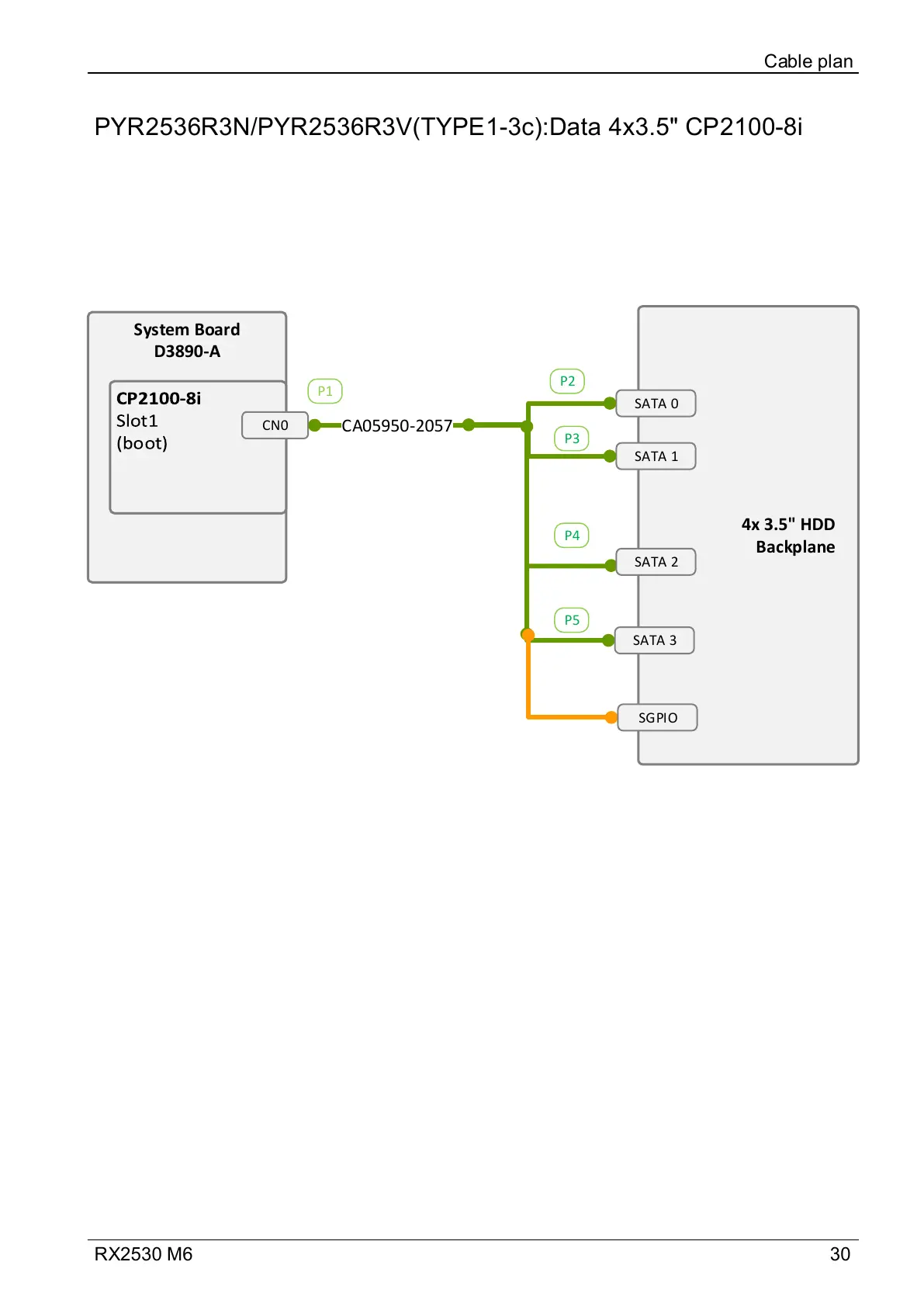

PYR2536R3N/PYR2536R3V(TYPE1-3c):Data 4x3.5" CP2100-8i

Cable plan

System Board

D3890-A

CN0

4x 3.5" HDD

Backplane

SATA 0

SATA 1

CA05950-2057

SATA 2

SATA 3

SGPIO
