31RX2530 M6

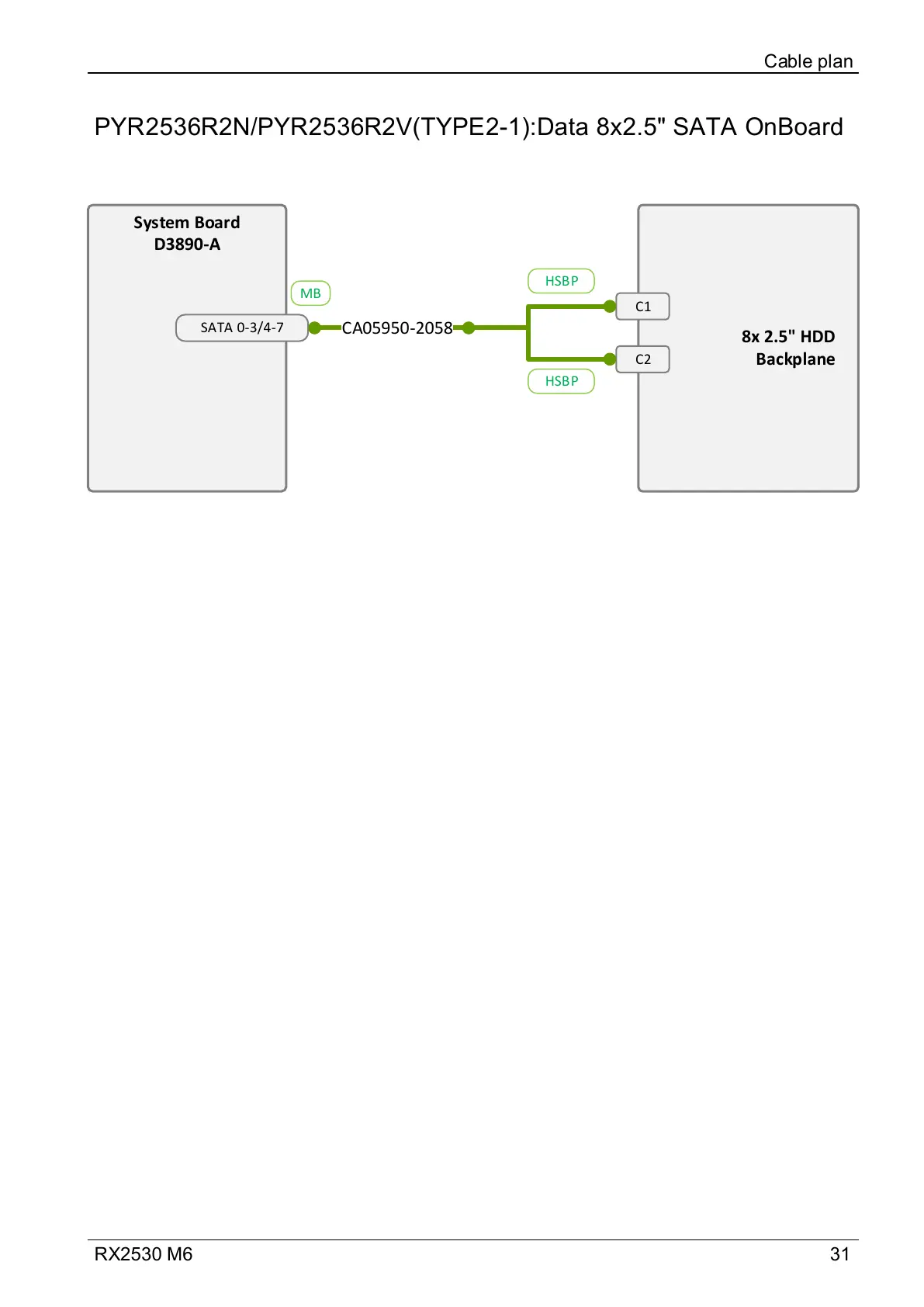

PYR2536R2N/PYR2536R2V(TYPE2-1):Data 8x2.5" SATA OnBoard

Cable plan

System Board

D3890-A

SATA 0-3/4-7

8x 2.5" HDD

Backplane

CA05950-2058

HSBP
