Fujitsu PRIMERGY RX2530 M6

To Next Page

To Previous Page

35RX2530 M6

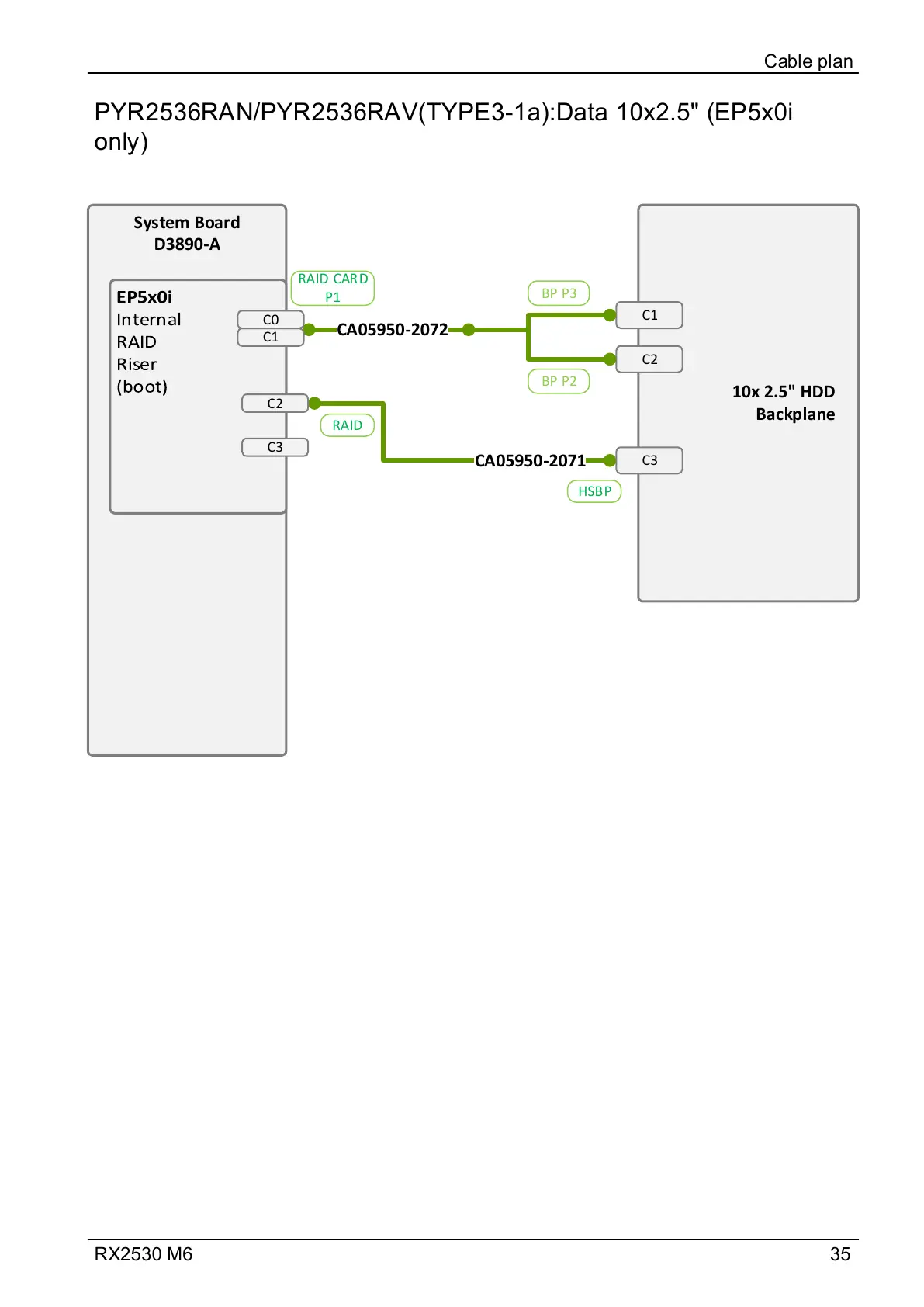

PYR2536RAN/PYR2536RAV(TYPE3-1a):Data 10x2.5" (EP5x0i

only)

Cable plan

System Board

D3890-A

10x 2.5" HDD

Backplane

CA05950-2072

CA05950-2071

BP P3

BP P2

RAID CARD

RAID

HSBP

Main Page
