36RX2530 M6

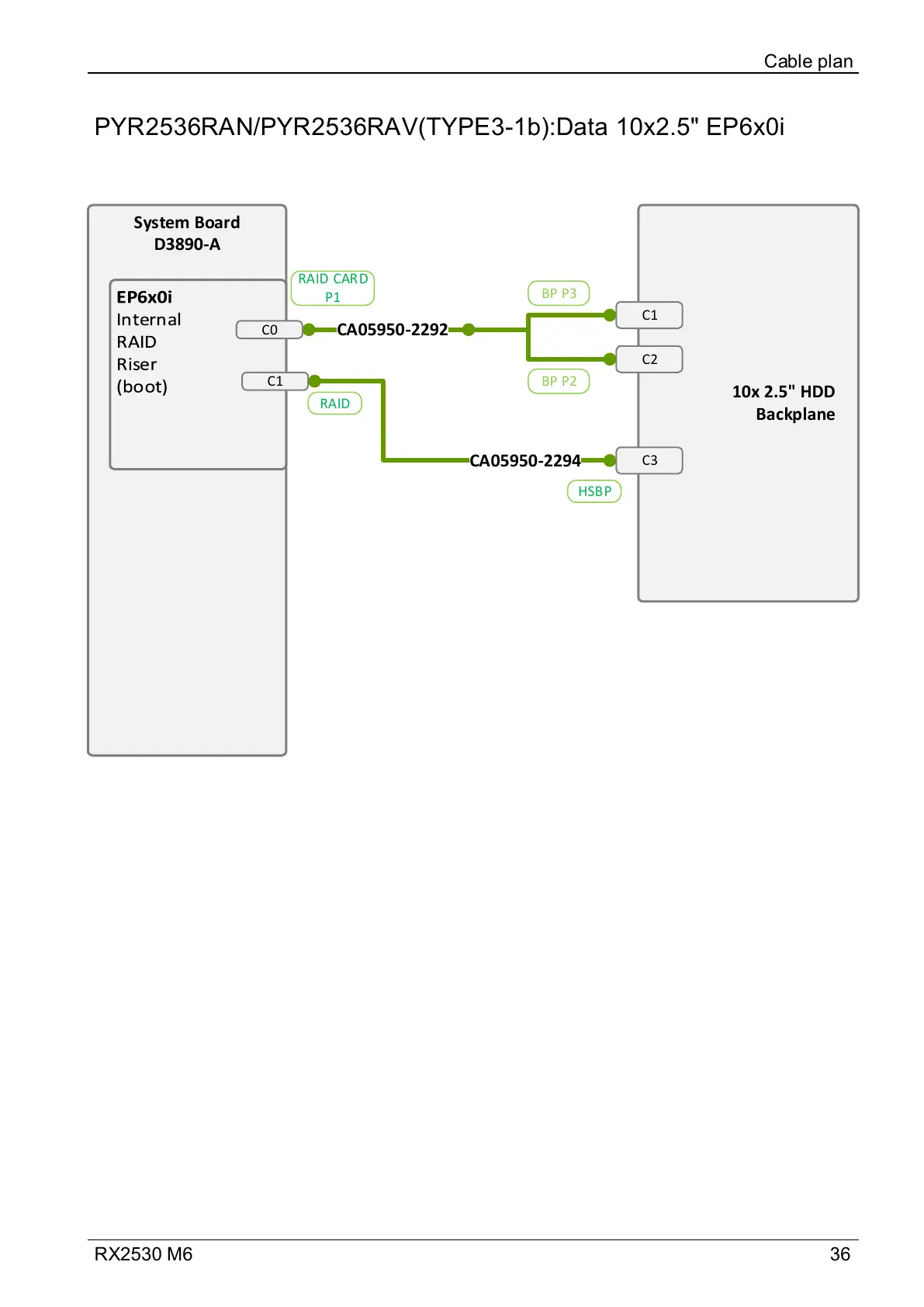

PYR2536RAN/PYR2536RAV(TYPE3-1b):Data 10x2.5" EP6x0i

Cable plan

System Board

D3890-A

10x 2.5" HDD

Backplane

CA05950-2292

CA05950-2294

BP P3

BP P2

RAID CARD

RAID

HSBP
