Push the green touch points inside (1).
▶
Fold the cover 1 up (2).
▶
Lift of
f the cover 1 upward (3).

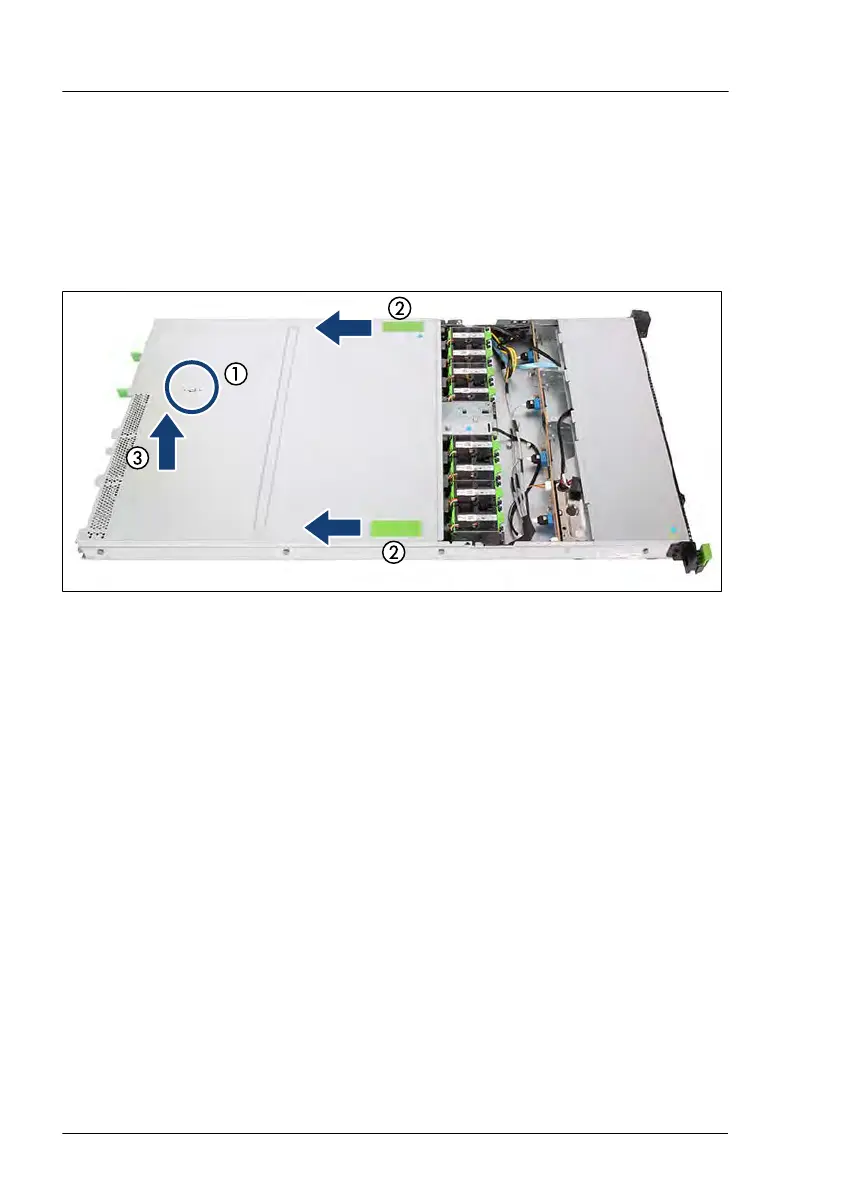

Removing the cover 2
Figure 10: Removing the cover 2
▶
Loosen the screw (1).
▶
Push the cover 2 as far as it will go in the direction of the arrow (2).
▶
Lift of
f the cover 2 upward (3).
Basic hardware procedures
56 Upgrade and Maintenance Manual RX2530 M6
