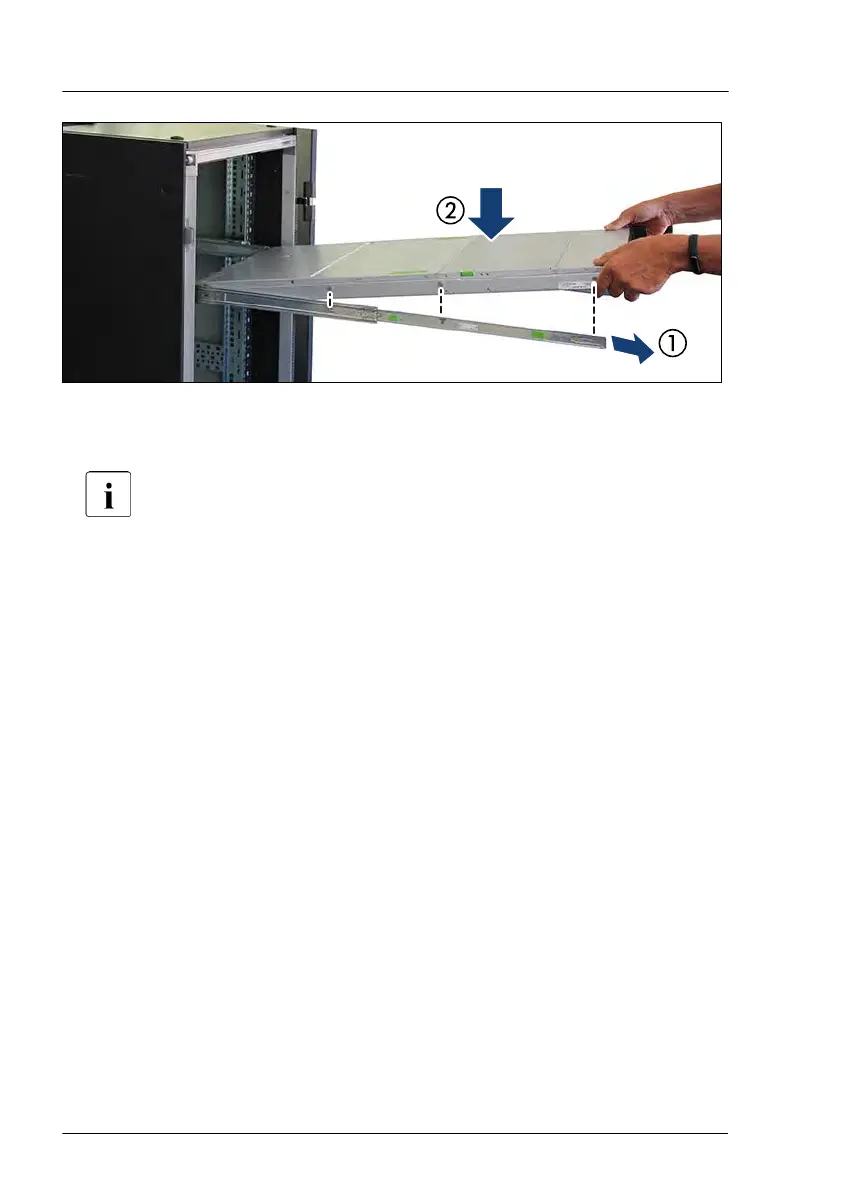

Figure 13: Installing the server in the rack rails
▶
Fully extend the rack rails until they lock in place (1).
The rack rails must click into place so that they can no longer be
moved.
▶
At a slight angle, lower the server onto the rear mounting point on the rack
rails (2).
▶
Ensure that all four rack mounting bolts are properly seated in the mounting
points on the rack rails and that the locking bars engage.
Basic hardware procedures
60 Upgrade and Maintenance Manual RX2530 M6
