Remove the PSU and install the dummy cover carefully.
Note for PSU 1:
Remove the PSU 1 carefully while lifting PSU 1 and bringing PSU 1
to the right, in order to avoid interference.
▶
Mount the complete assembly (CMA bracket and the CMA) again into the
rail.
Preliminary steps
▶
No steps needed.
Removing a hot-plug PSU
▶
Remove the power cord from the dedicated PSU, see "Disconnecting the
power cord" on page
47.

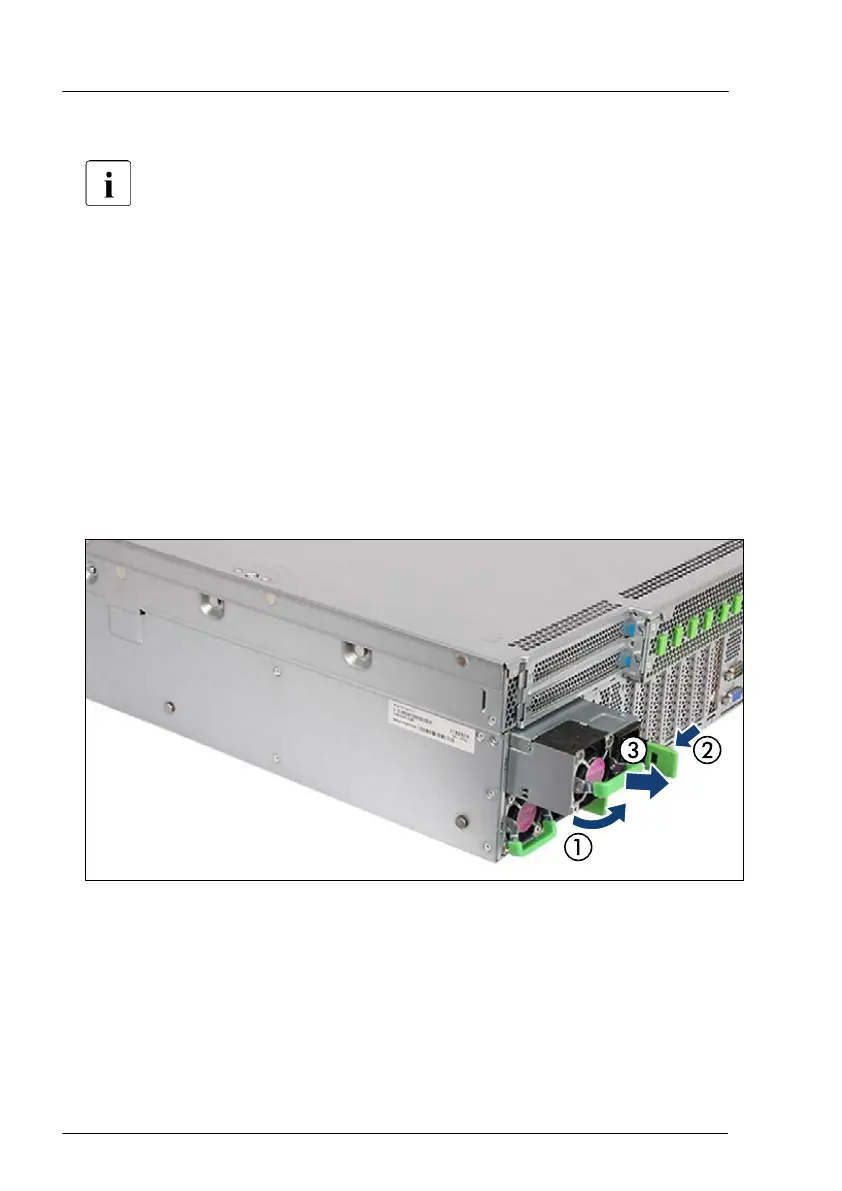

Figure 44: Removing an PSU
▶
Push the handle of the PSU halfway upward in the direction of the arrow (1).
▶
Press in on the green locking latch (2).
▶
While keeping the green locking latch pressed, pull the PSU out of its bay
(3).
Power supply unit (PSU)
126 Upgrade and Maintenance Manual RX4770 M6
